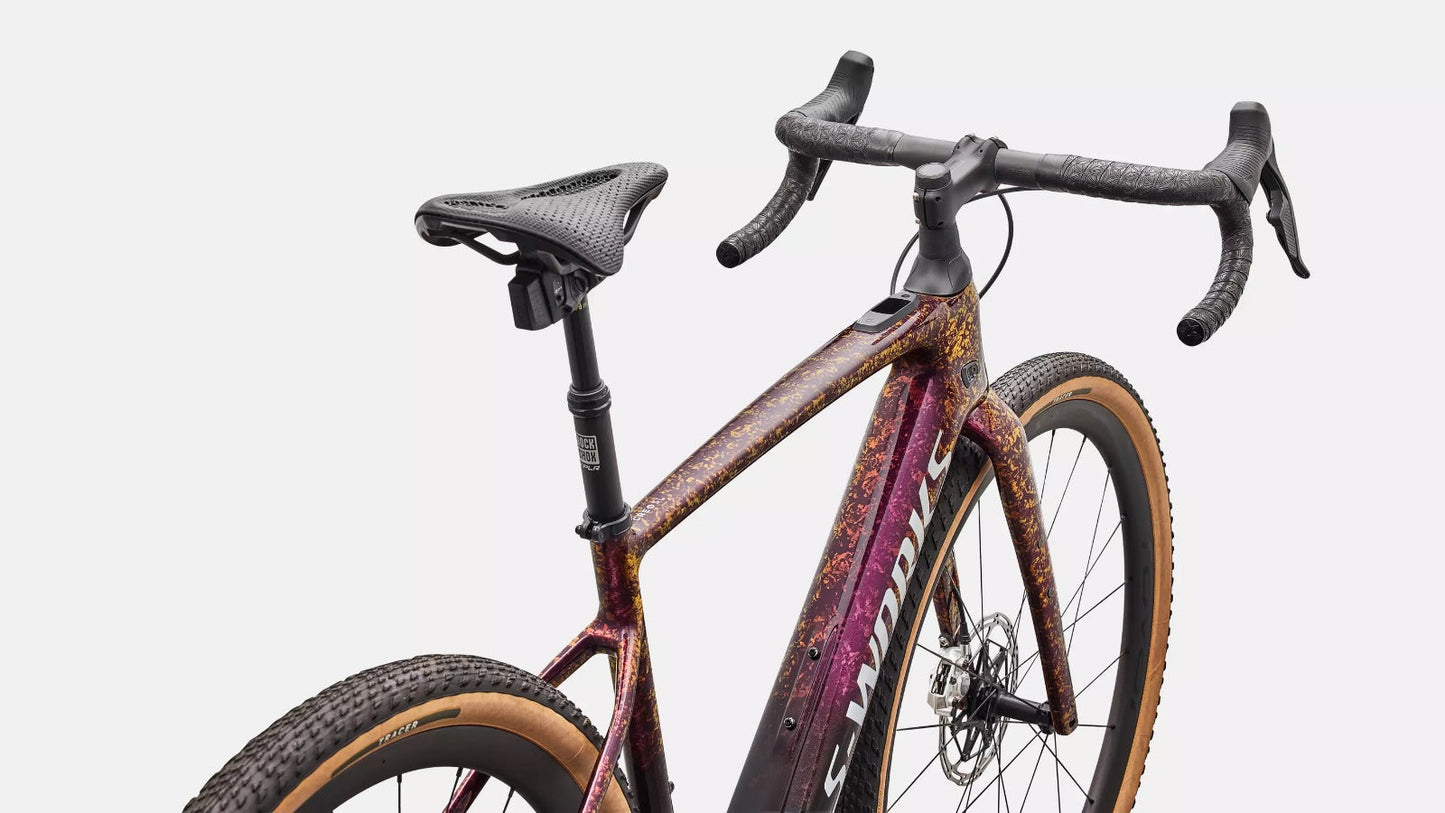

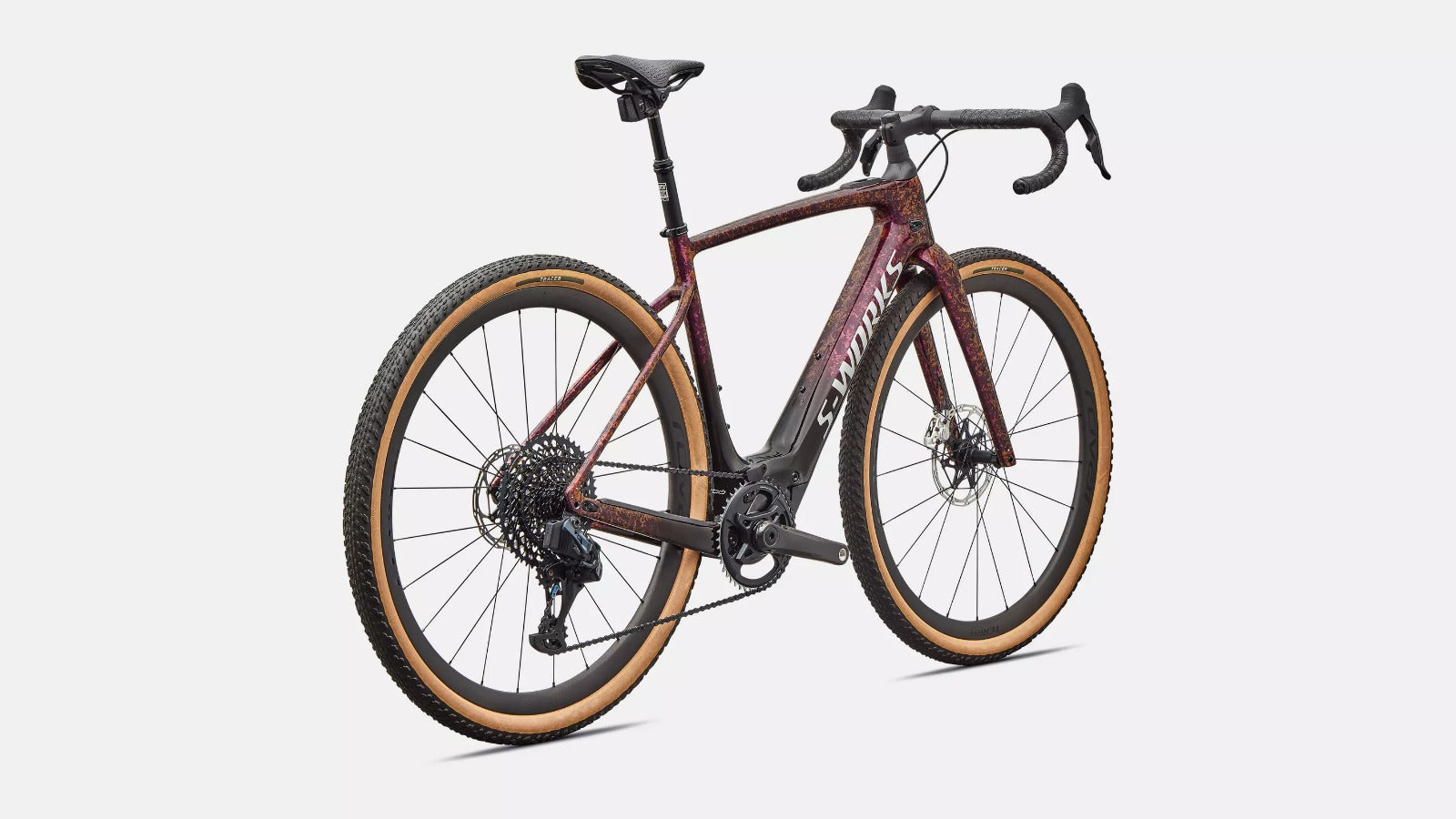

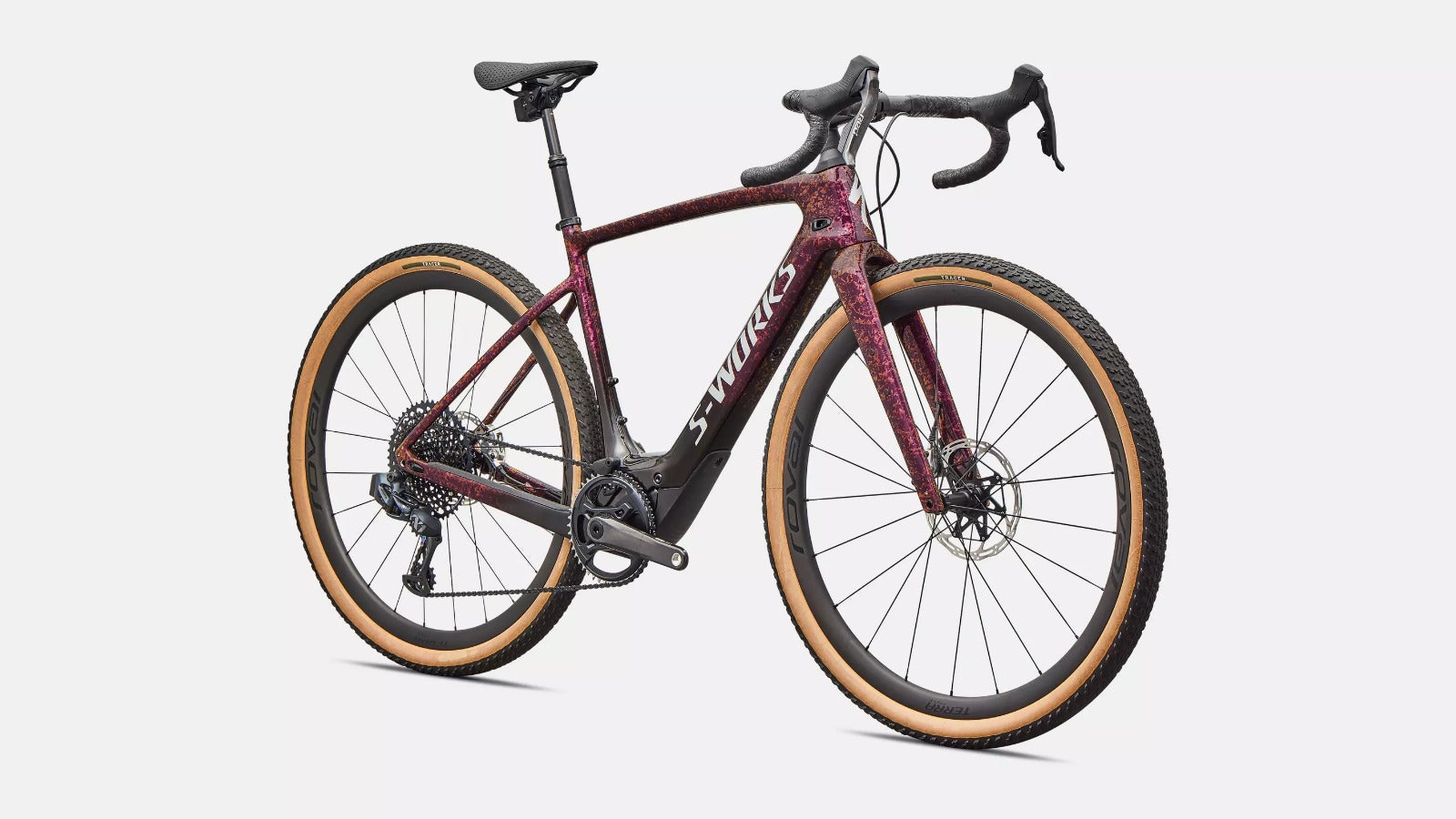

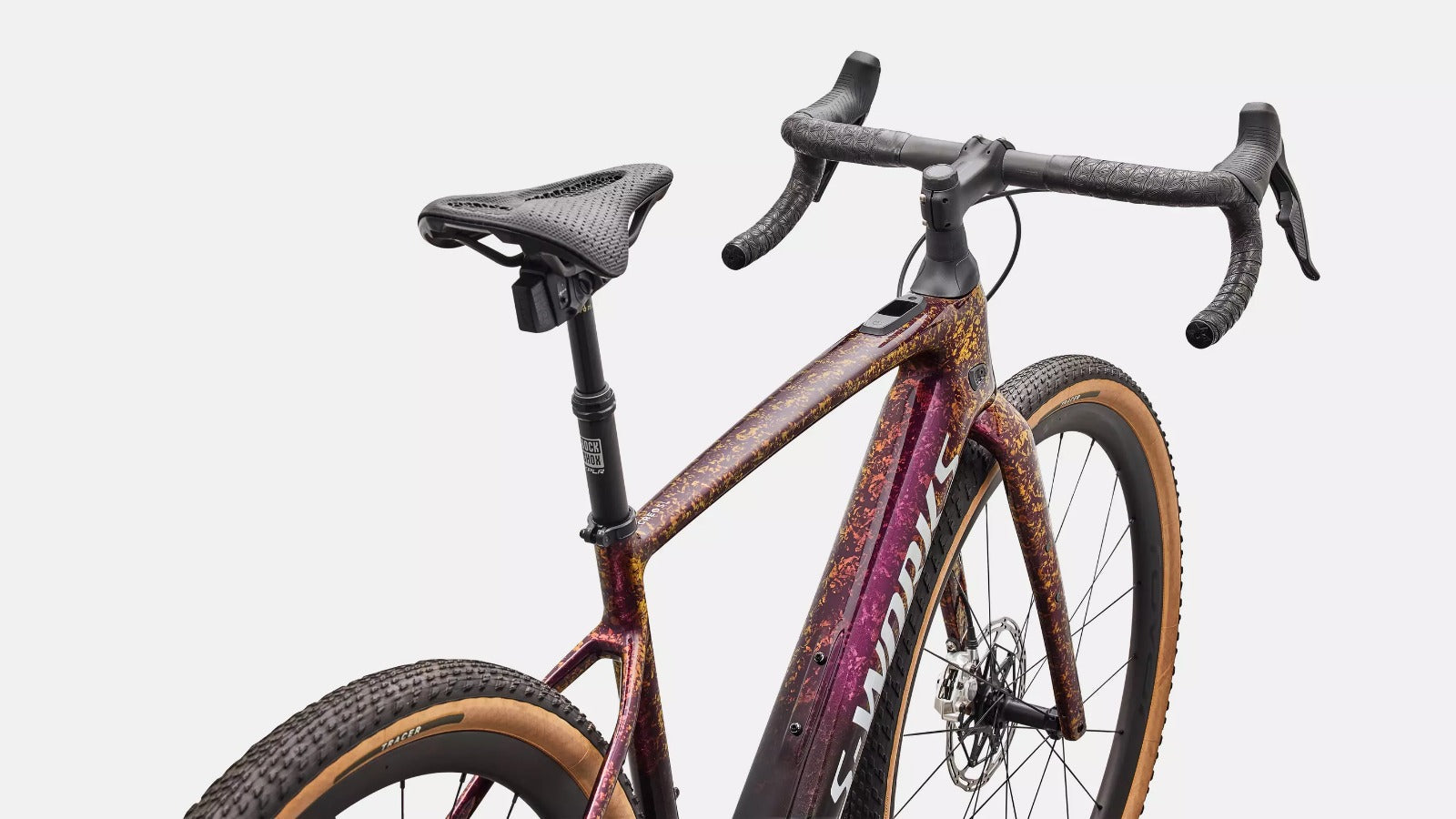

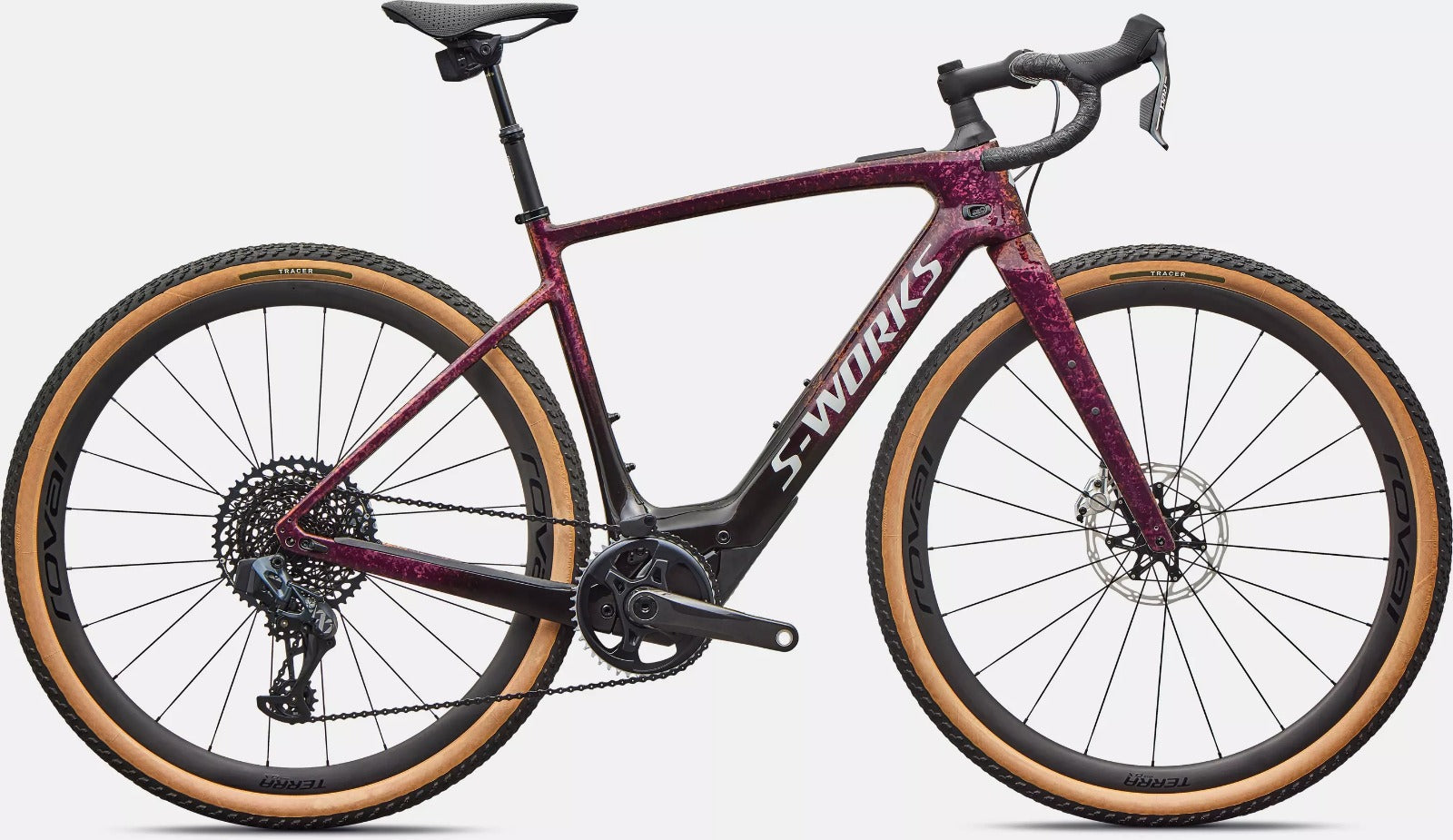

S-Works Turbo Creo 2

Technical Specifications

E-bike
Wiring Harness
Custom Specialized wiring harness w/ charge port

Charger
Custom charger, 48V System w/ SL system charger plug

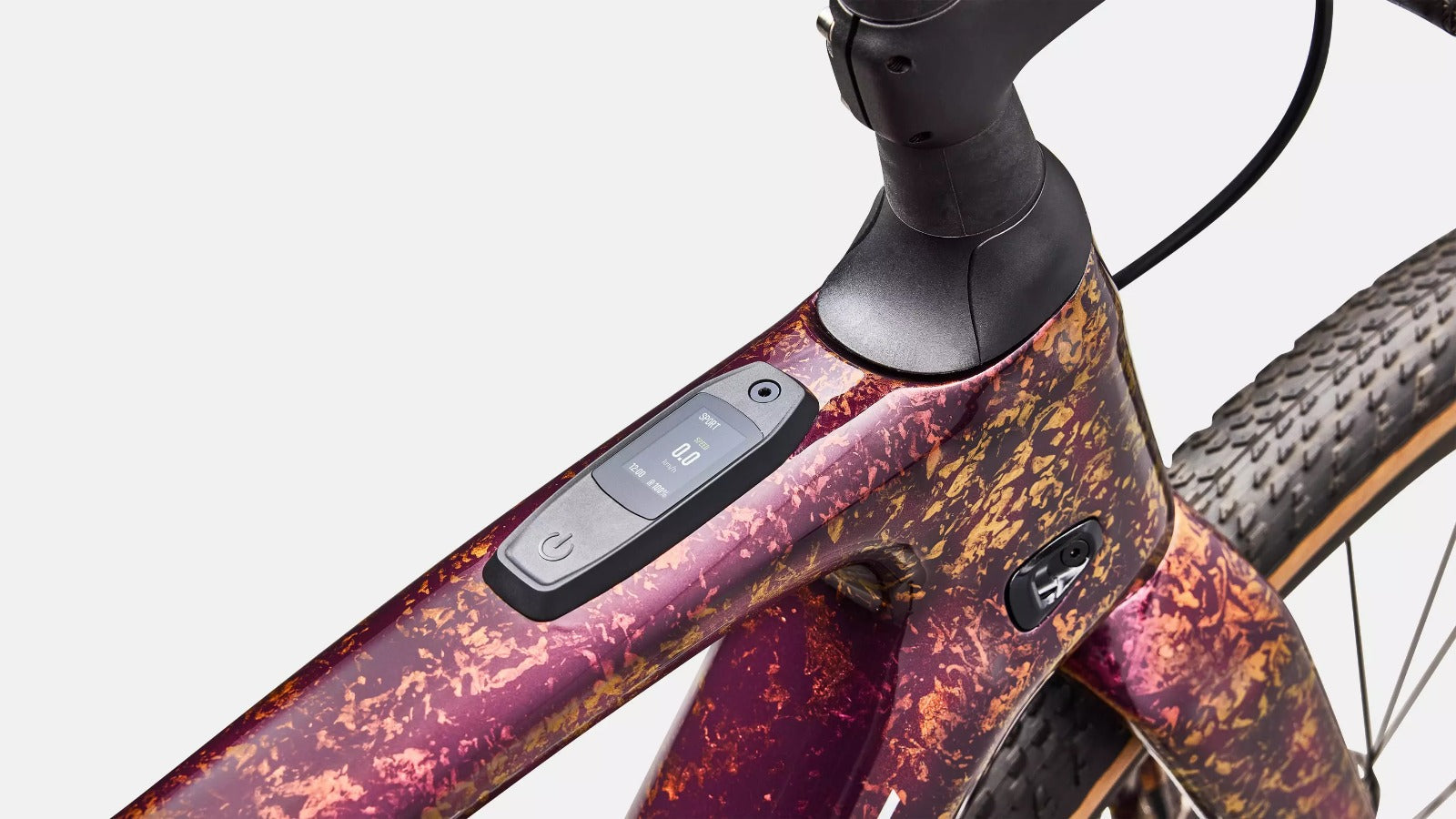

UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote

Motor
Specialized 1.2 SL Custom Lightweight Motor

Battery
Specialized SL1-320, fully integrated, 320Wh

Frameset

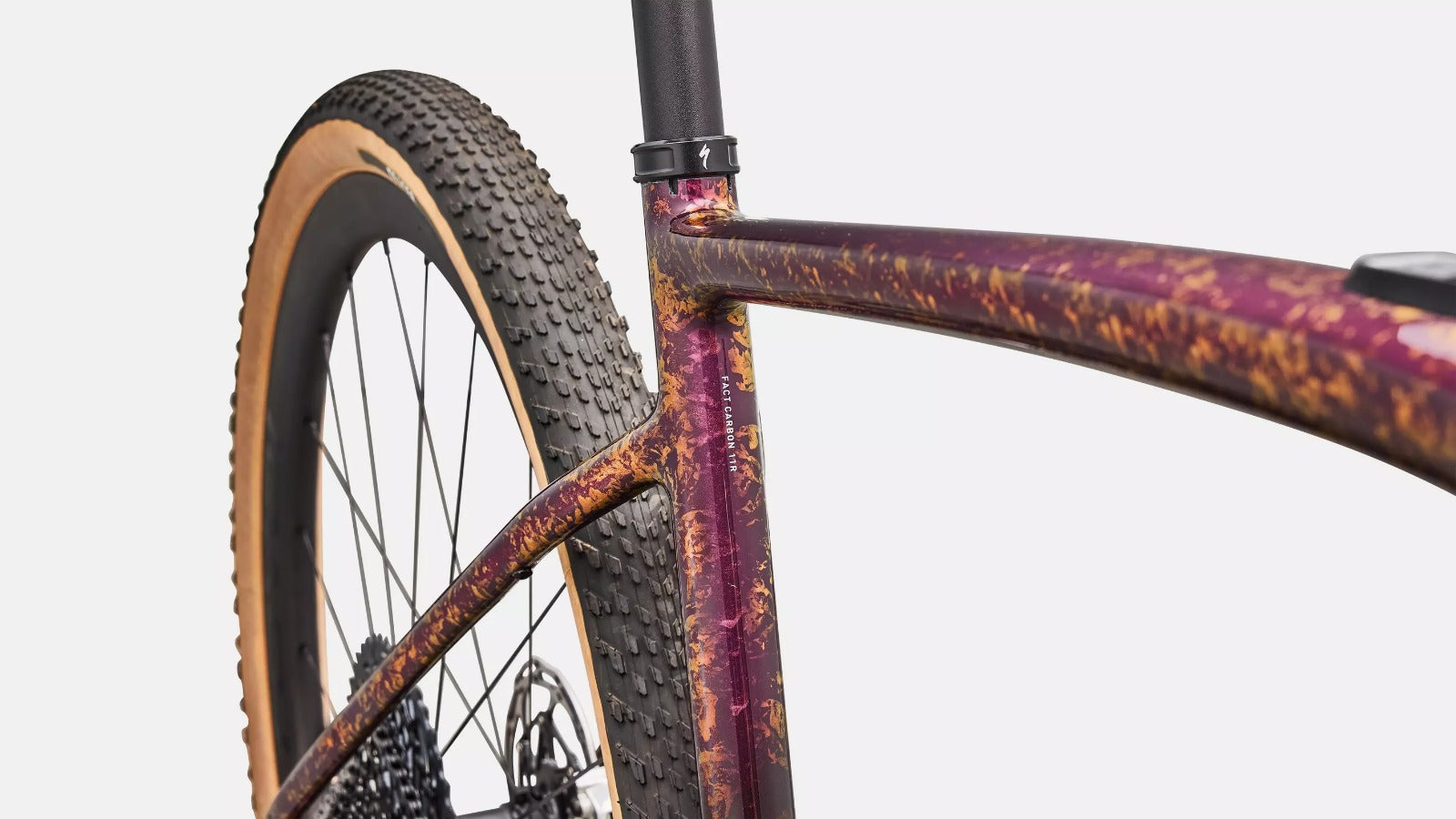

Frame
FACT 11r carbon, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, 12x142mm

Seat Binder
Specialized Alloy, 31.8

Suspension
Fork
Future Shock 3.3 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc

Brakes
Front Brake
SRAM RED AXS, hydraulic disc

Rear Brake
SRAM RED E1, hydraulic disc

Drivetrain

Chainrings
SRAM X-Sync Eagle, 107 BCD, 44T

Crankset
SRAM Carbon DUB Crank Arms

Shift Levers
SRAM RED AXS E1

Cassette
SRAM XG-1295 Eagle, 12-speed, 10-50t

Chain
SRAM XX1 Eagle

Rear Derailleur
SRAM XX1 Eagle AXS

Wheels & tires

Inner Tubes
700x32/50mm, 48mm Presta valve

Front Wheel
Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes

Rear Wheel
Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes

Front Tire
Tracer TLR All Terrain Gravel Tire, 700x50c, GRIPTON T5

Rear Tire
Tracer TLR All Terrain Gravel Tire, 700x50c, GRIPTON T5

Cockpit

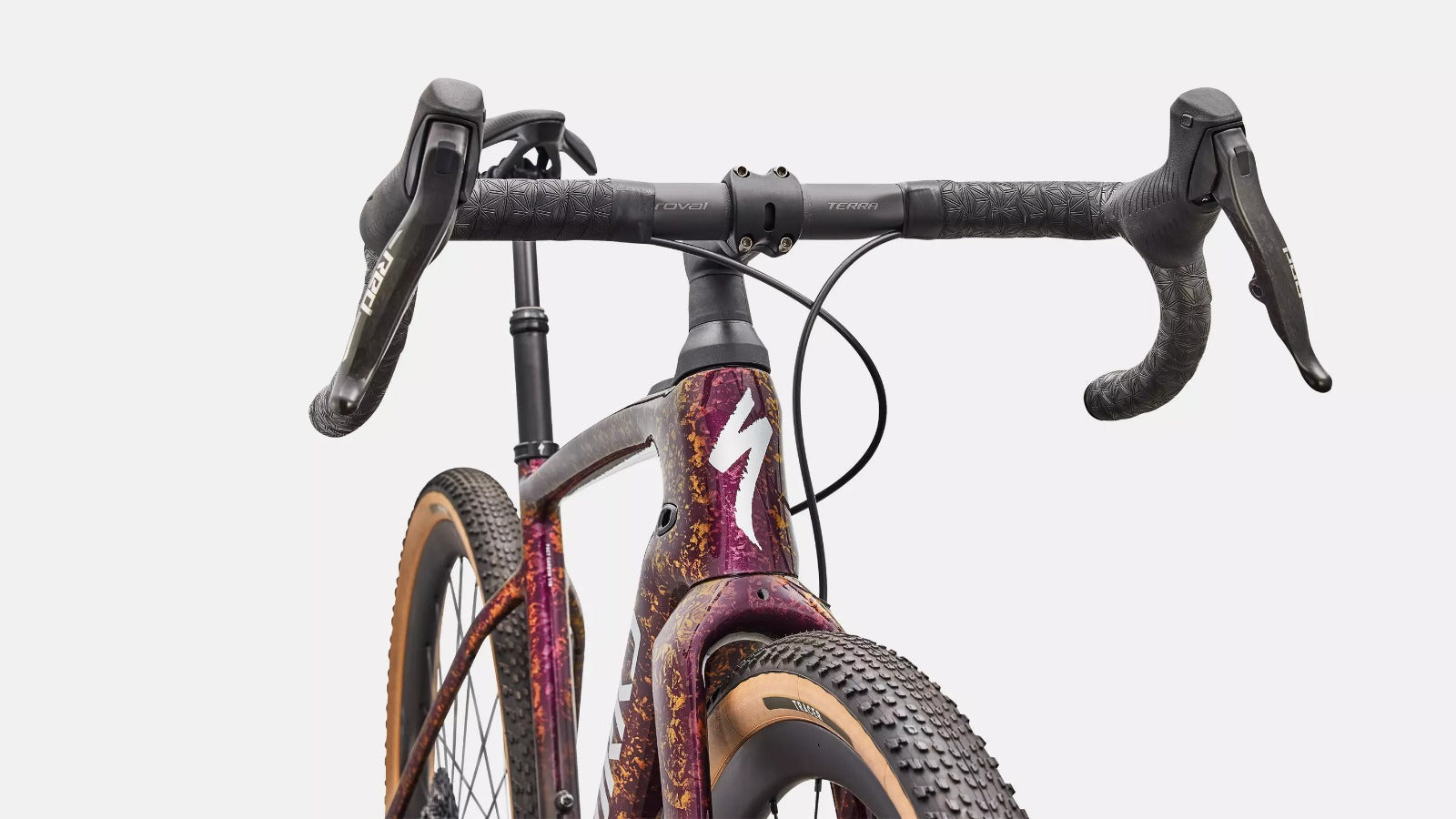

Handlebars
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Stem
S-Works Future Stem w/ Integrated Computer mount

Saddle
S-Works Power with Mirror

SeatPost
SRAM Reverb AXS XPLR Dropper, 49cm-52cm: 50mm drop; 54cm-61cm: 75mm Drop

Tape
Supacaz Super Sticky Kush

Product details

Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight
12.87 kg (28 lb, 6.0 oz)

Weight Size
56
