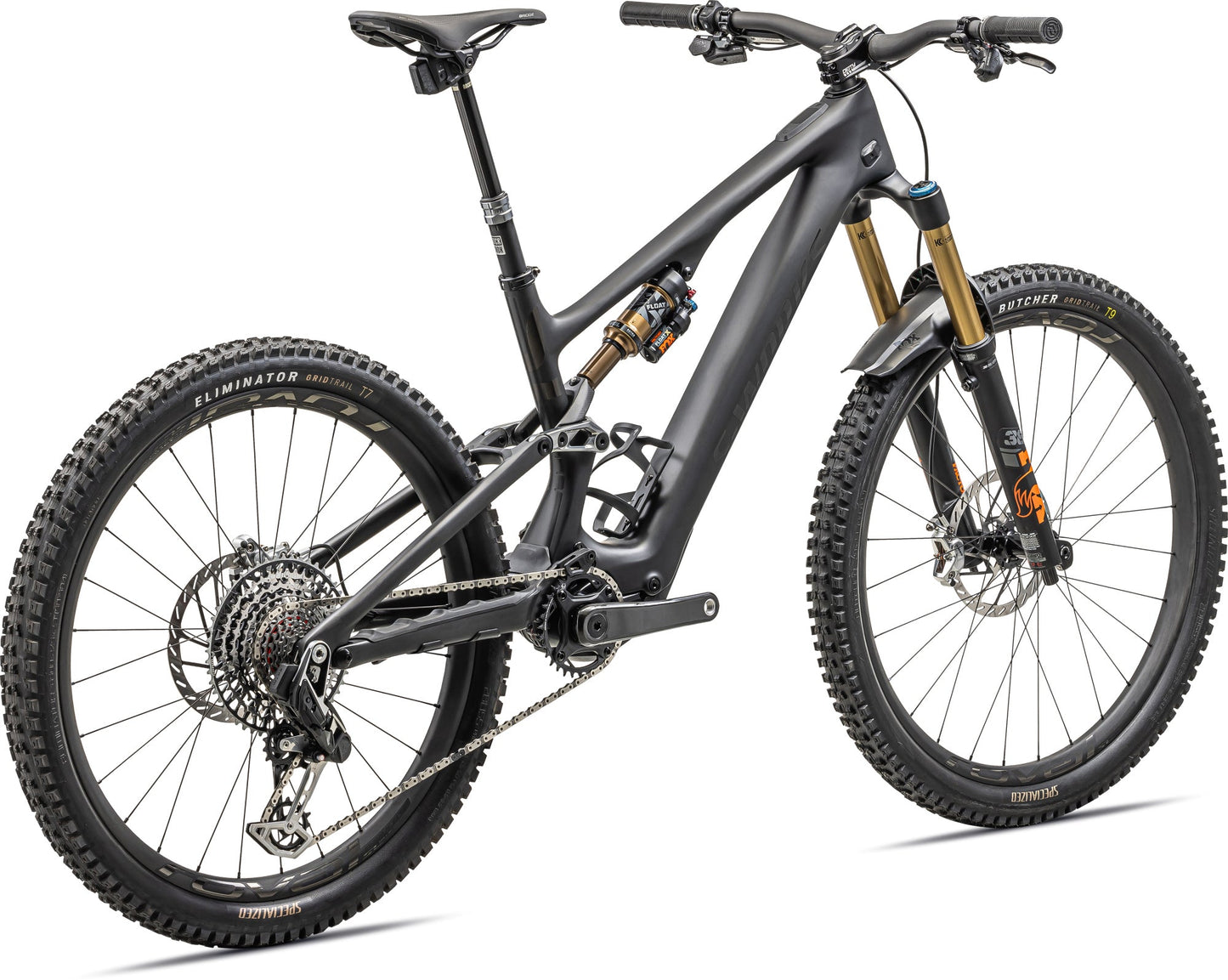

The Levo SL delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree, Levo SL is the ultimate trail bike.


Technical Specifications

E-bike

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 48V System w/ SL system charger plug

Motor

New Specialized 1.2 SL Custom Rx Trail Tuned Motor

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote

Battery

Specialized SL1-320, fully integrated, 320Wh



Frameset

Frame

All new Levo SL SW Frame, Fact 11m carbon, carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.



Brakes

Rear Brake

SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 200mm

Front Brake

SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 200mm



Cockpit

Saddle

Bridge, 155/143mm, Hollow Ti-rails

Grips

Deity Grips

Stem

Deity, 35.0mm

SeatPost

RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)

Handlebars

Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Seat Binder

Alloy, 38.6mm





Wheels

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"

Inner Tubes

Standard, Presta Valve

Rims

Roval Traverse SL Carbon, 29 Front, 27.5 Rear, 30mm inner width, hand-built, 2Bliss Ready

Spokes

DT Swiss Competition Race

Rear Hub

Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing

Front Hub

Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing



Suspension

Fork

Fox 36 Factory, 29", 44mm offset, Grip 2 damper, Kashima, S1: 150mm, S2-S6:160mm

Rear Shock

S2-S6: Fox Float X Factory series, Kashima, 210x55mm, S1: Fox Float DPS Factory, Kashima, 210x50mm



Drivetrain

Chainrings

New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring

Shift Levers

SRAM AXS POD Controller

Crankset

SRAM Carbon Crankset, Dub interface

Chain

SRAM XX Eagle Transmission Flattop Chain

Rear Derailleur

SRAM XX Eagle Transmission Derailleur

Cassette

SRAM XX Eagle Transmission Cassette, 12spd, 10-52t



Accessories

SWAT

SWAT CC steerer tube integrated tool with chain tool and link



* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice
