SPECIALIZED

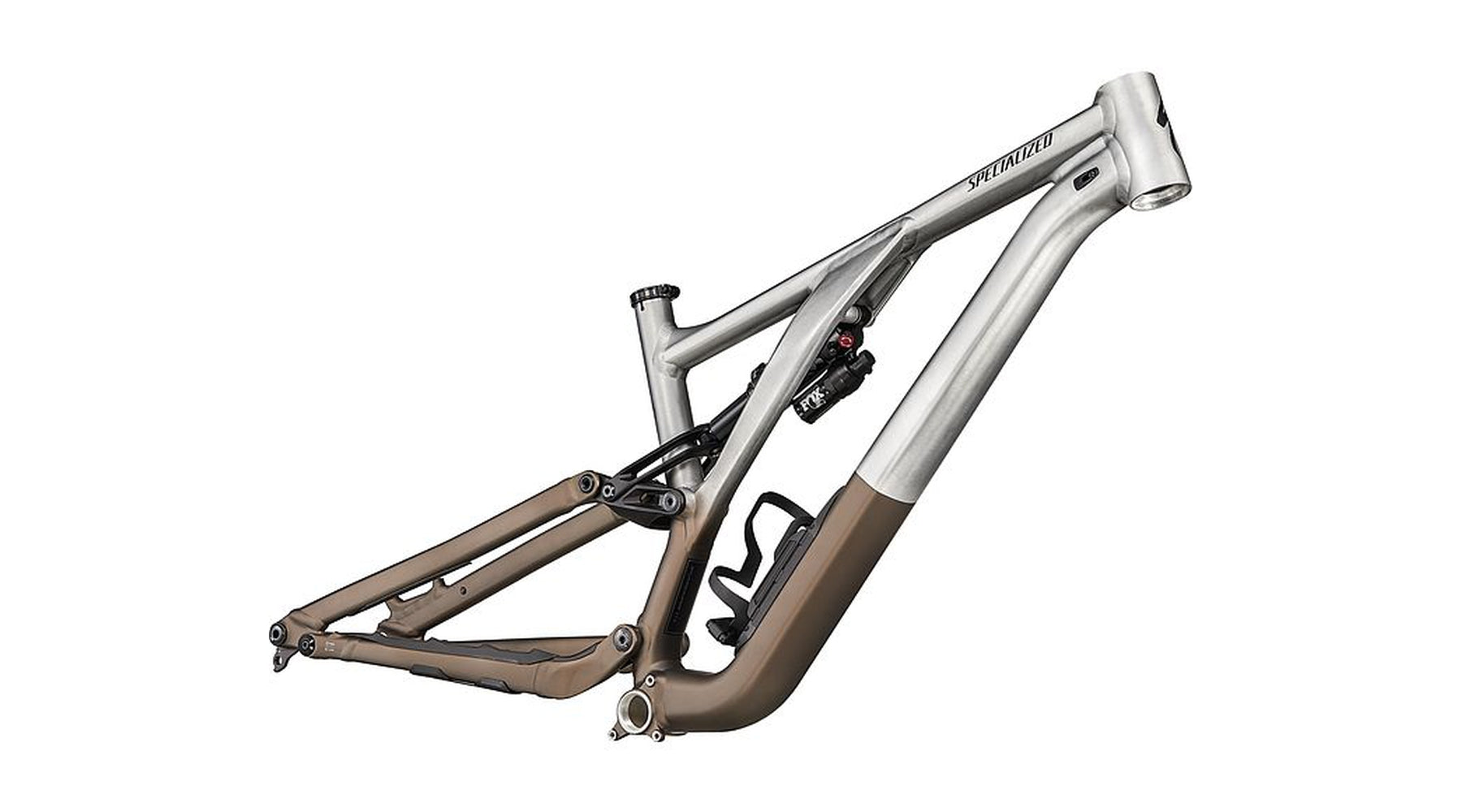

Stumpjumper EVO Alloy Frameset

Stumpjumper EVO Alloy Frameset

SKU: 76322-7002

Regular price R 36,000.00
Regular price R 36,000.00 Sale price R 36,000.00
Sale Sold out
Tax included.
Size
Color

Only 0 left in stock

Let's get something clear, the Stumpjumper EVO Alloy isn't a "normal" trail bike. It's built to get gnarly, plain and simple. Featuring the same all-new design as its carbon brethrenÑincluding an adjustable head tube angle, 150mm of performance tuned travel, the adaptability of S-Sizing, and SWATª Door integrationÑin a lightweight yet tough M5 Alloy chassis, you're going to be able to bomb down trails that you thought you couldn't touch without a full-blown DH rig.

View full details

Technical Specifications

FRAMESET

Frame

M5 Alloy chassis and rear-end, asymmetrical design, 29" Trail Geometry with S-Sizing, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel

Seat Binder

Alloy, 38.6mm

SWAT

SWAT™ Door integration



SUSPENSION

Rear Shock

FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1:210x50mm, S2-S6:210x55mm



* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

 S1S2S3S4S5S6
Crank Length165mm170mm170mm170mm170mm175mm
Stack614mm617mm626mm635mm644mm654mm
Reach410mm428mm448mm475mm498mm528mm
Headtube Length95mm95mm105mm115mm125mm135mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
BB Height335mm340mm340mm340mm340mm340mm
BB Drop40mm35mm35mm35mm35mm35mm
Trail131mm131mm131mm131mm131mm131mm
Fork Length (full)561mm571mm571mm571mm571mm571mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center734mm756mm780mm809mm838mm873mm
Chainstay Length441mm441mm441mm441mm451mm451mm
Wheelbase1172mm1195mm1219mm1249mm1288mm1322mm
Top-tube Length (horizontal)541mm564mm590mm623mm647mm679mm
Bike Standover Height746mm749mm757mm760mm784mm792mm
Seat Tube Length385mm385mm405mm425mm445mm465mm
Seat Tube Angle78°77.6°77.2°76.9°77°77°
Max Seatpost Insertion190mm190mm210mm230mm250mm270mm
Min Seatpost Insertion100mm100mm100mm100mm100mm100mm
