Technical Specifications
WEIGHT
Weight Size
56cm
Weight
7.77 kg (17 lb, 2.1 oz)
COCKPIT
Saddle
Body Geometry Power Expert
SeatPost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

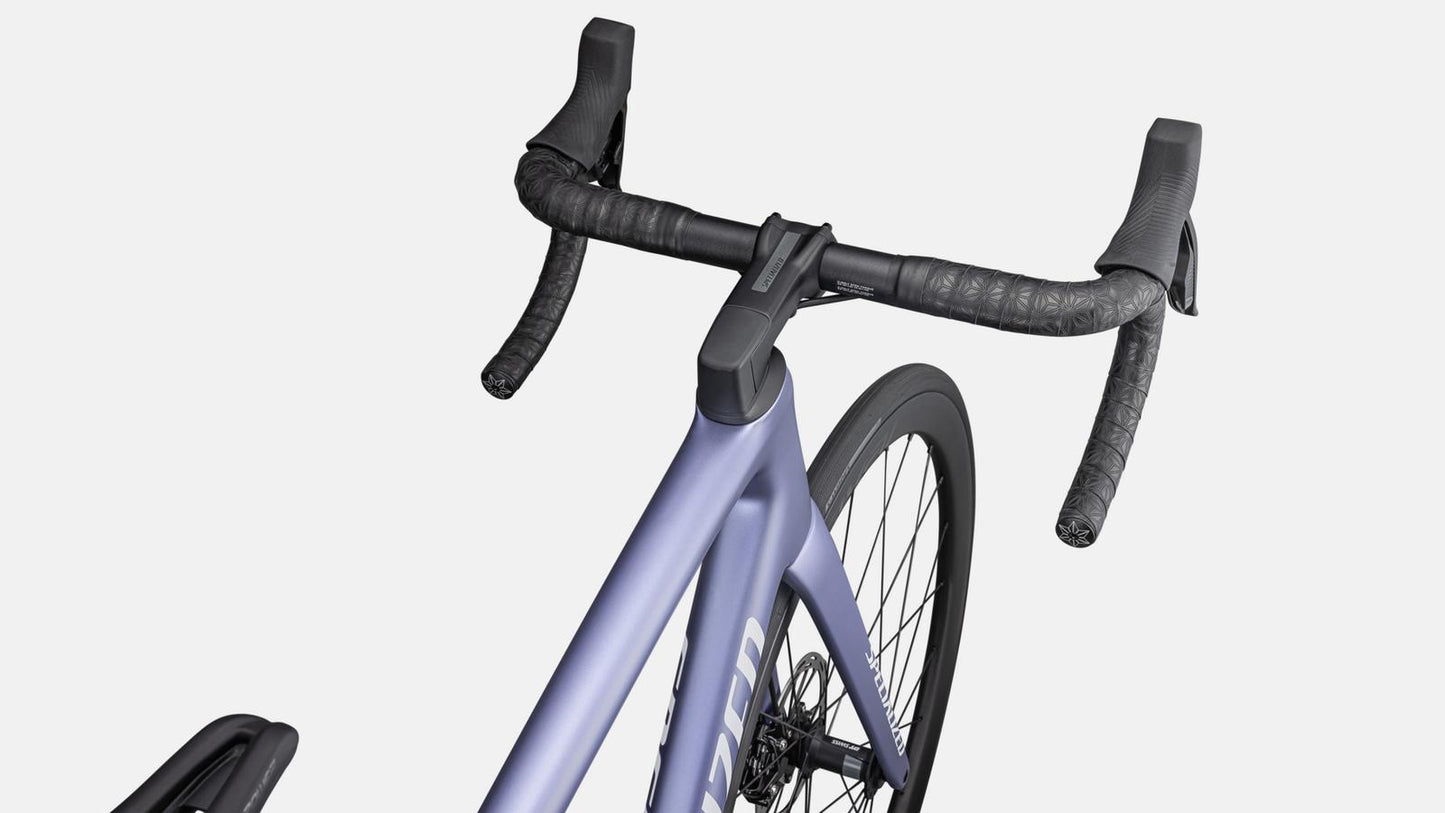

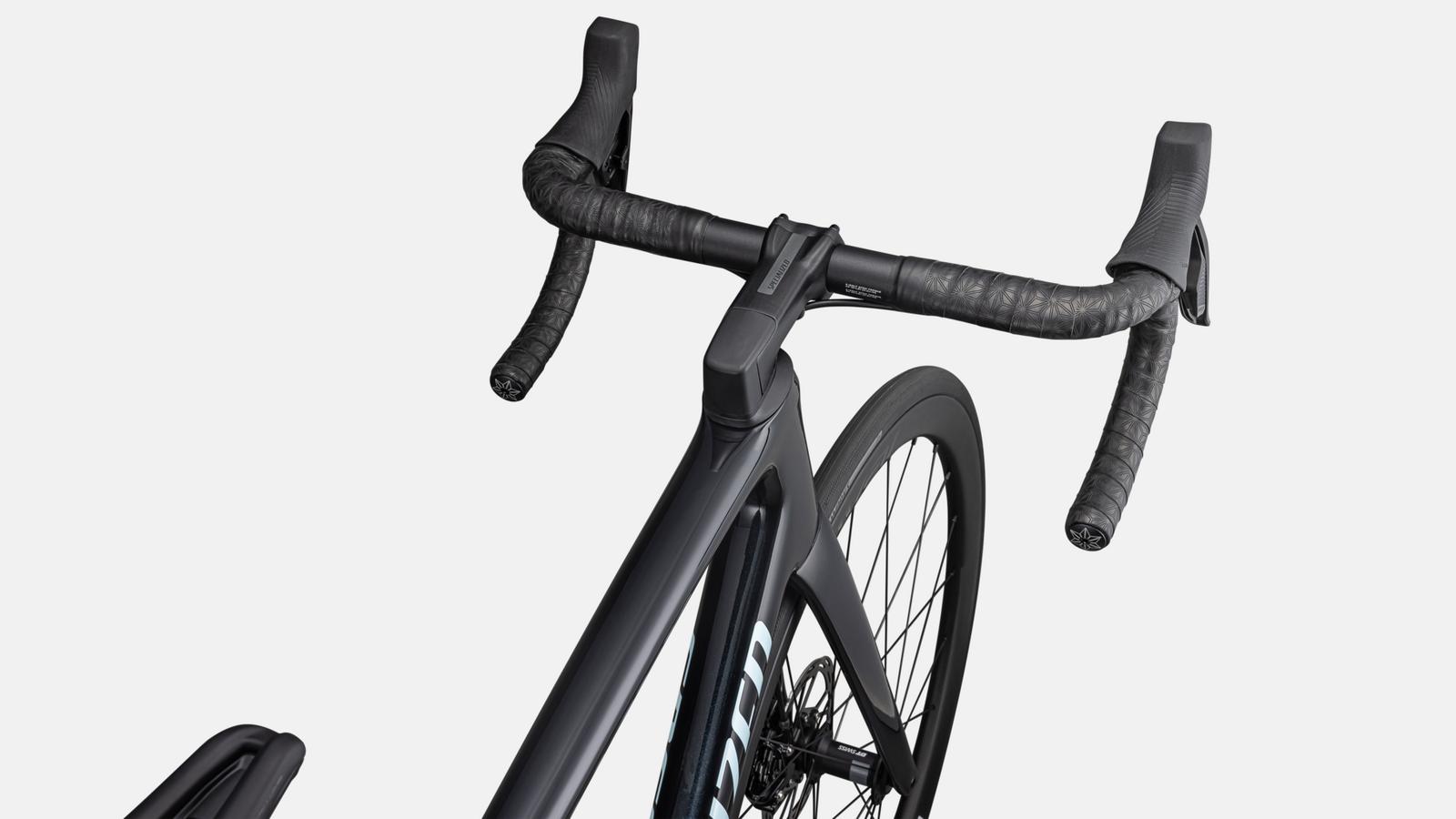

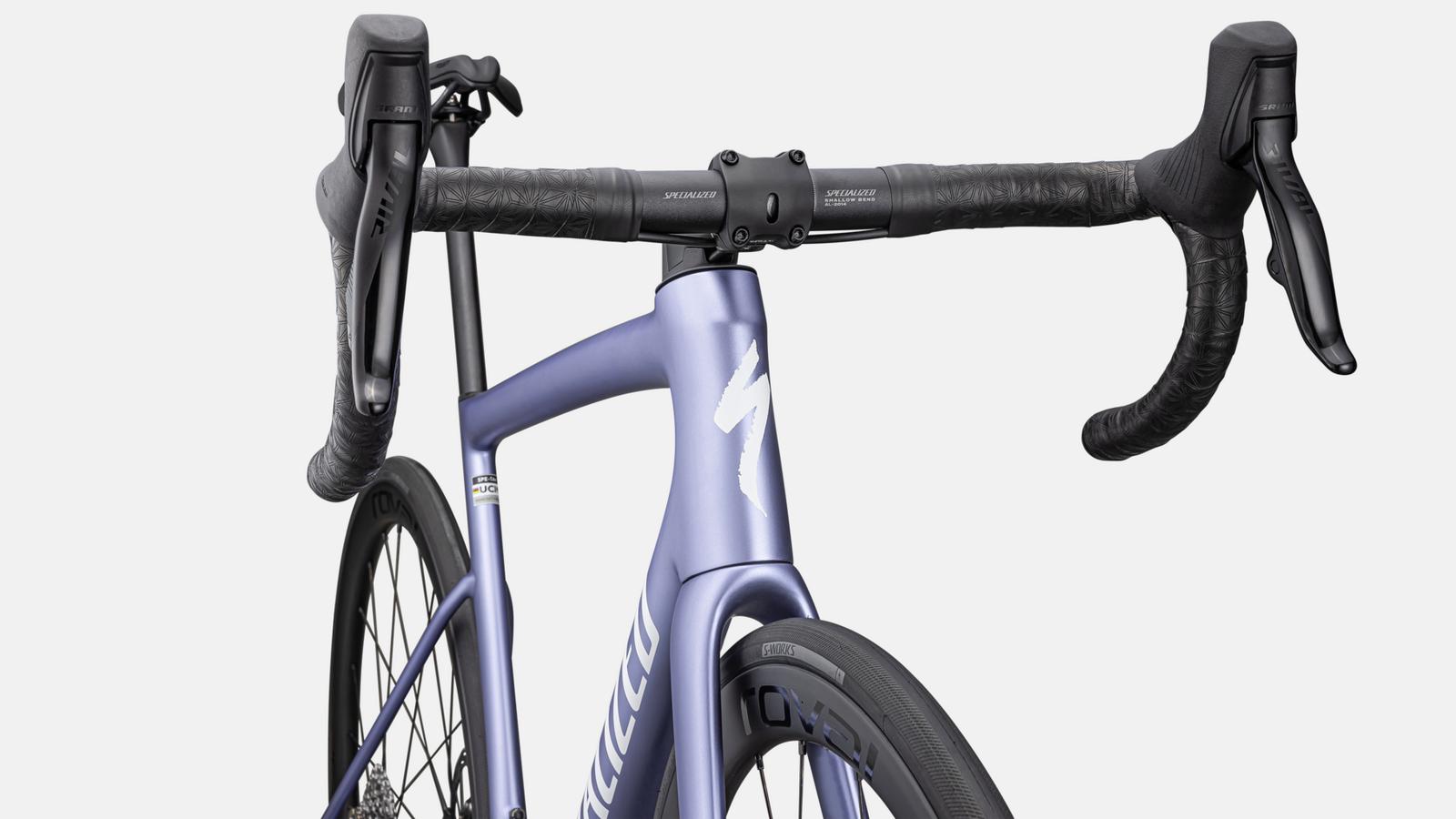

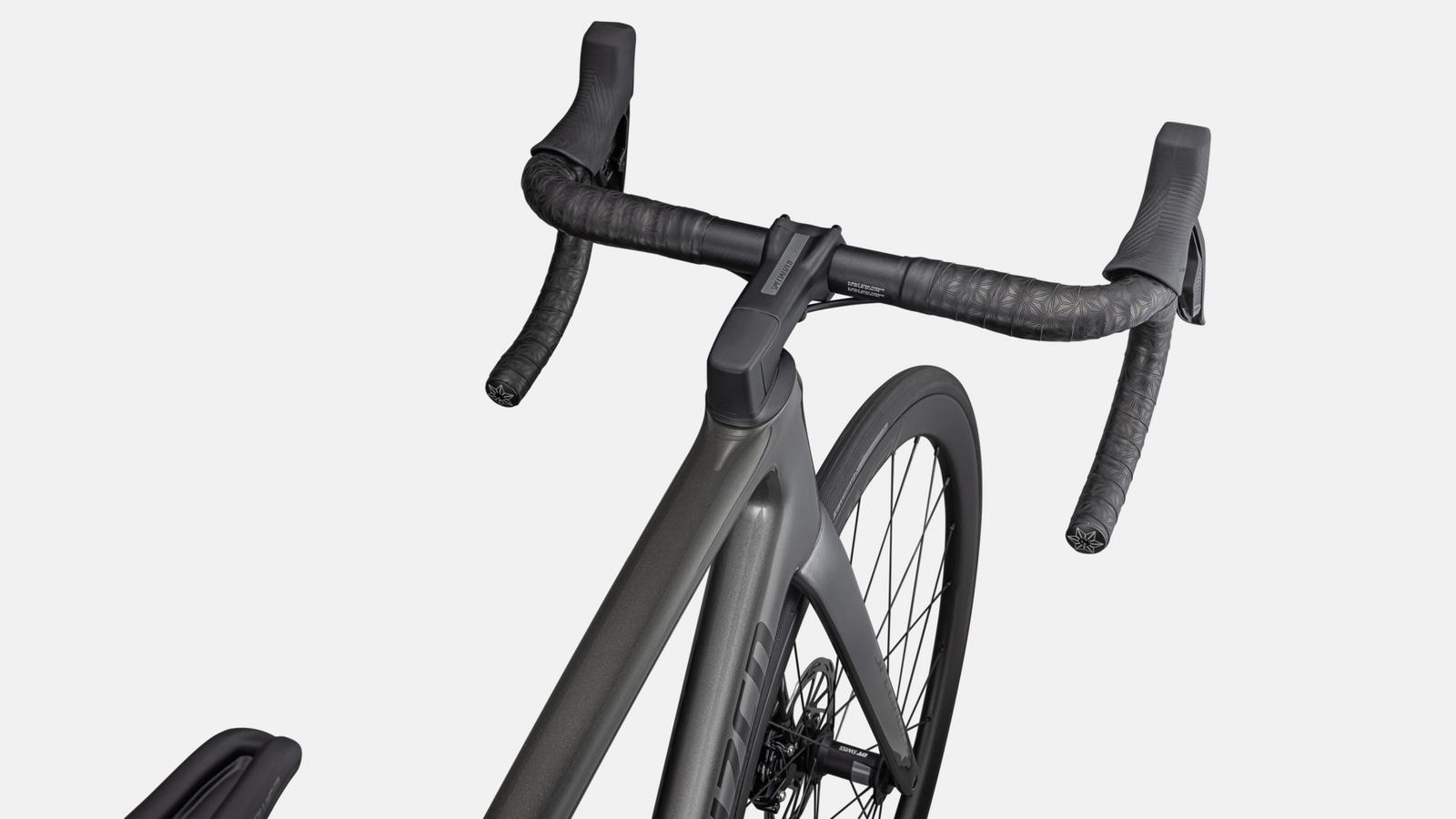

Handlebars
Specialized Expert Shallow Drop, alloy, 125mm drop x 75mm reach
Tape
Supacaz Super Sticky Kush

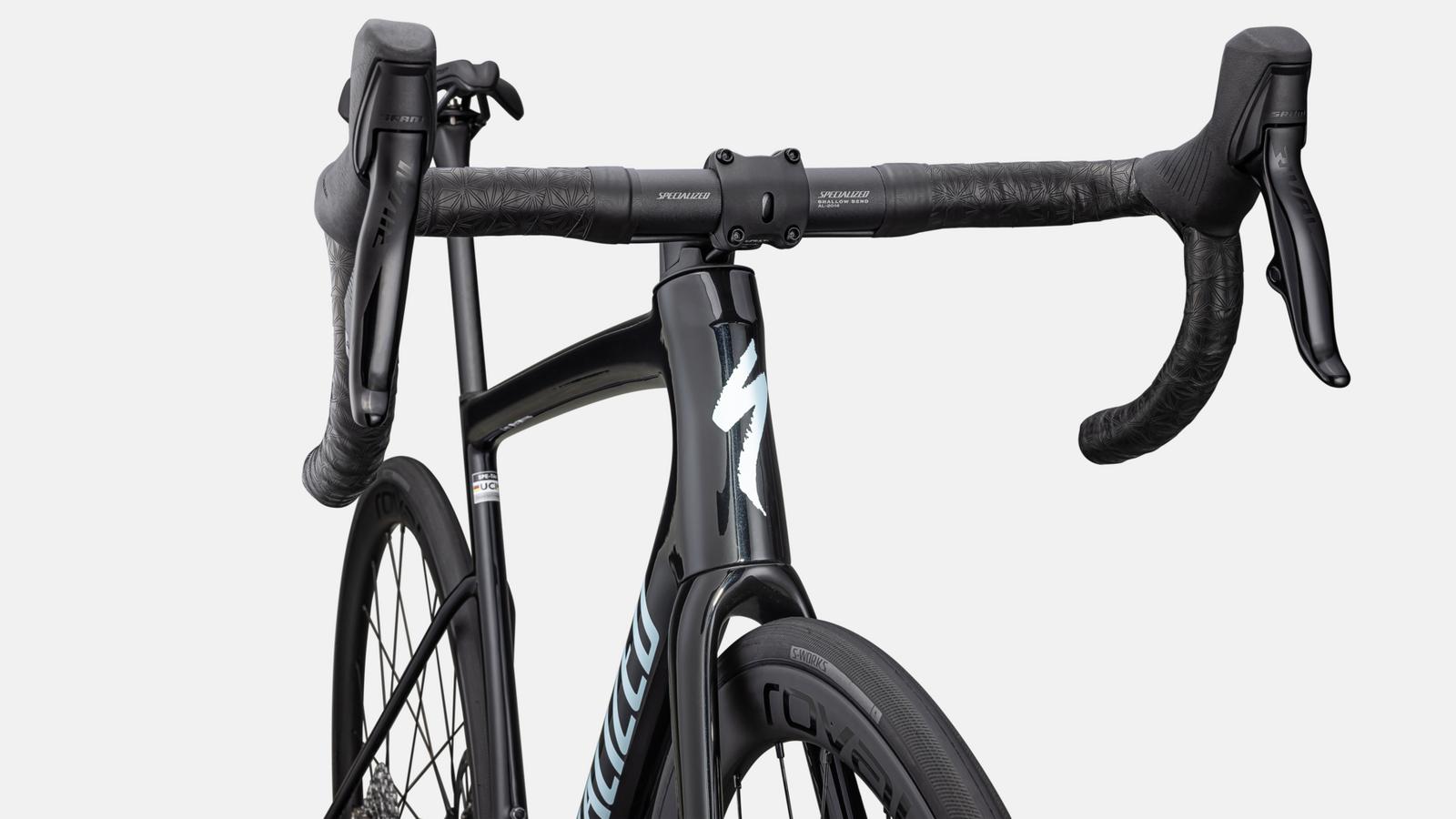

Stem
Tarmac integrated stem, 6-degree
Seat Binder
Tarmac integrated wedge
SUSPENSION
Fork
Tarmac SL8 FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc
FRAMESET

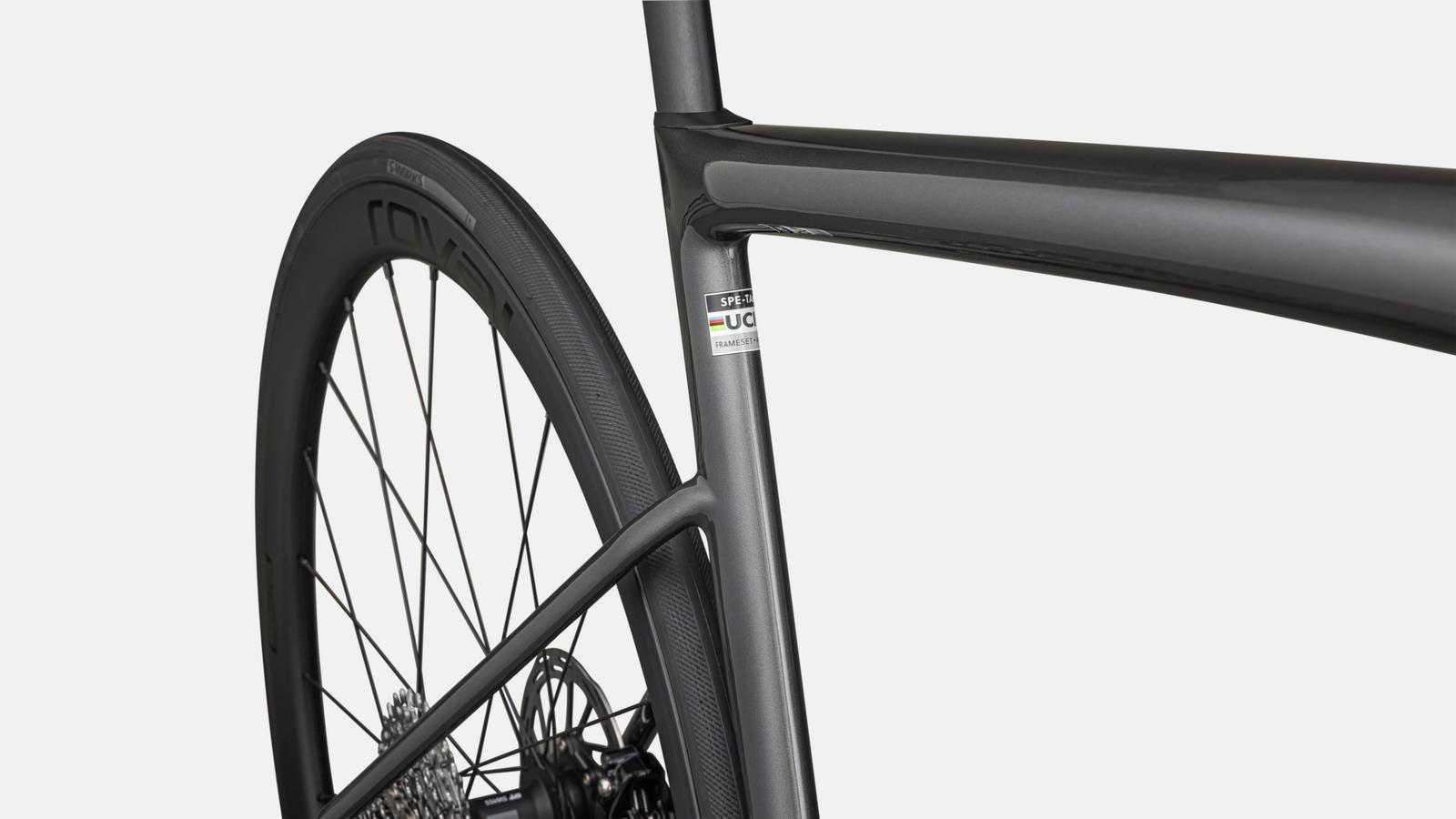

Frame
Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
WHEELS & TIRES
Inner Tubes
Turbo Ultralight, 48mm Presta valve
Front Wheel
Roval C38, 21mm internal width carbon rim
Rear Wheel
Roval C38, 21mm internal width carbon rim
Front Tire
S-Works Turbo, folding bead, 700x26mm
Rear Tire
S-Works Turbo, folding bead, 700x26mm
DRIVETRAIN
Chain
SRAM Rival 12-speed
Cassette
SRAM Rival, 12-speed, 10-36t
Bottom Bracket
SRAM DUB BSA 68
Shift Levers
SRAM Rival eTap AXS
Rear Derailleur
SRAM Rival eTap AXS, 12-speed
Crankset
SRAM Rival with Power Meter
Front Derailleur
SRAM Rival eTAP AXS, braze-on
Chainrings
48/35T
BRAKES
Front Brake
SRAM Rival eTap AXS, hydraulic disc
Rear Brake
SRAM Rival eTap AXS, hydraulic disc
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
44 | 49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|---|
Crank Length | 165mm | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 360mm | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 70mm | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Saddle Width | 155mm | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 300mm | 300mm | 300mm | 380mm | 380mm | 380mm | 380mm |
Frame Stack | 501mm | 514mm | 527mm | 544mm | 565mm | 591mm | 612mm |
Frame Reach | 366mm | 375mm | 380mm | 384mm | 395mm | 402mm | 408mm |
Stack to Stem | 509mm | 522mm | 535mm | 552mm | 573mm | 599mm | 620mm |
Reach to Stem | 363mm | 372mm | 377mm | 381mm | 393mm | 400mm | 406mm |
Head Tube Length | 99mm | 109mm | 120mm | 137mm | 157mm | 184mm | 204mm |
Head Tube Angle | 70.5° | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
BB Height | 266mm | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
BB Drop | 74mm | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
Trail | 71mm | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
Fork Length, Full | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm |
Fork Rake/Offset | 47mm | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 572mm | 574mm | 577mm | 579mm | 592mm | 606mm | 613mm |
Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
Wheelbase | 970mm | 973mm | 975mm | 978mm | 991mm | 1006mm | 1013mm |
Top Tube Length, Horizontal | 496mm | 509mm | 531mm | 541mm | 563mm | 577mm | 595mm |
Bike Standover Height | 723mm | 735mm | 746mm | 768mm | 786mm | 808mm | 834mm |
Seat Tube Length | 433mm | 445mm | 456mm | 473mm | 494mm | 515mm | 545mm |
Seat Tube Angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
Size Guide
-
