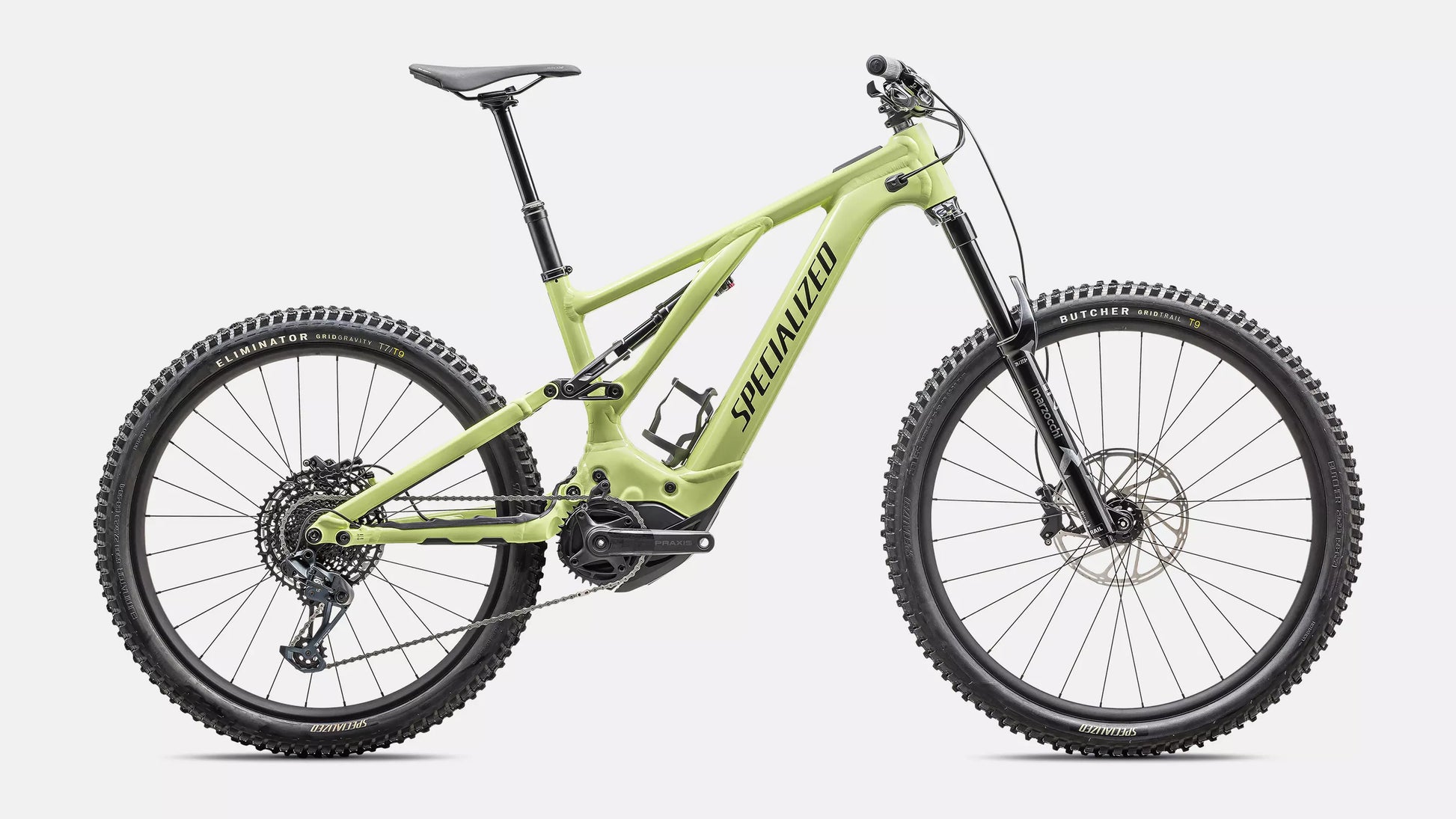

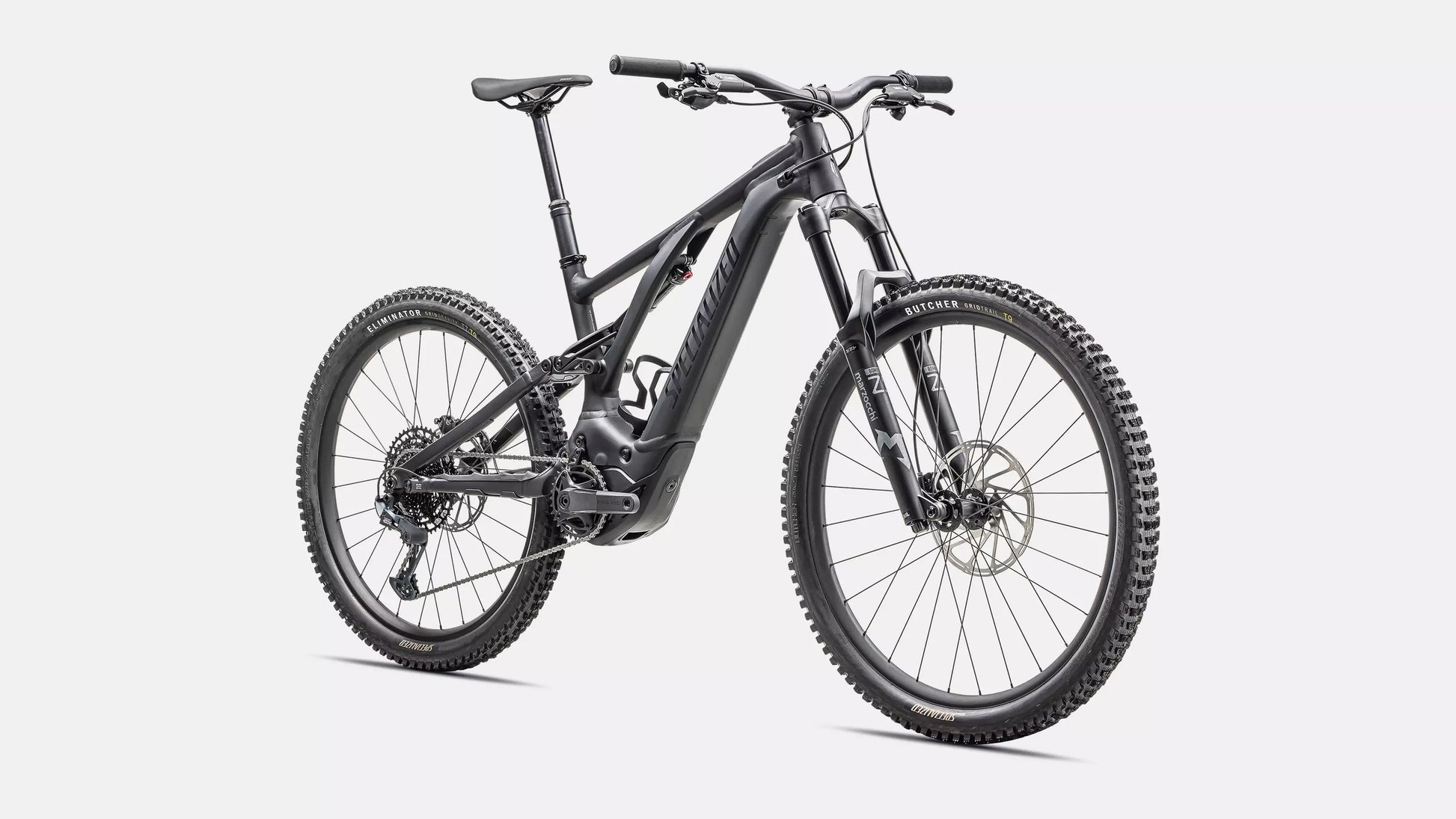

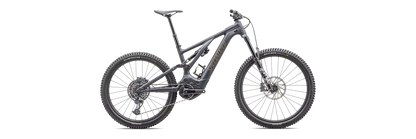

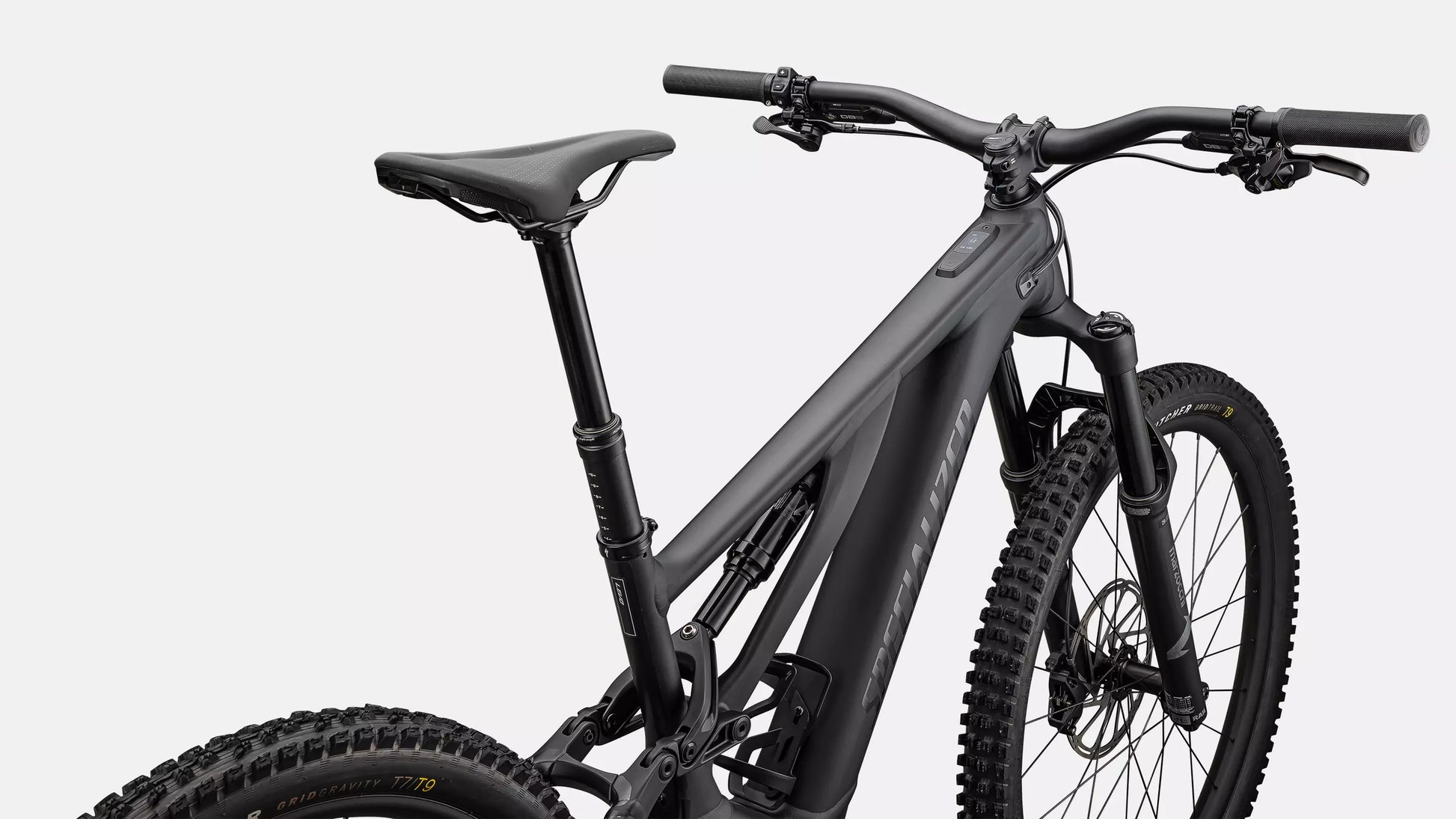

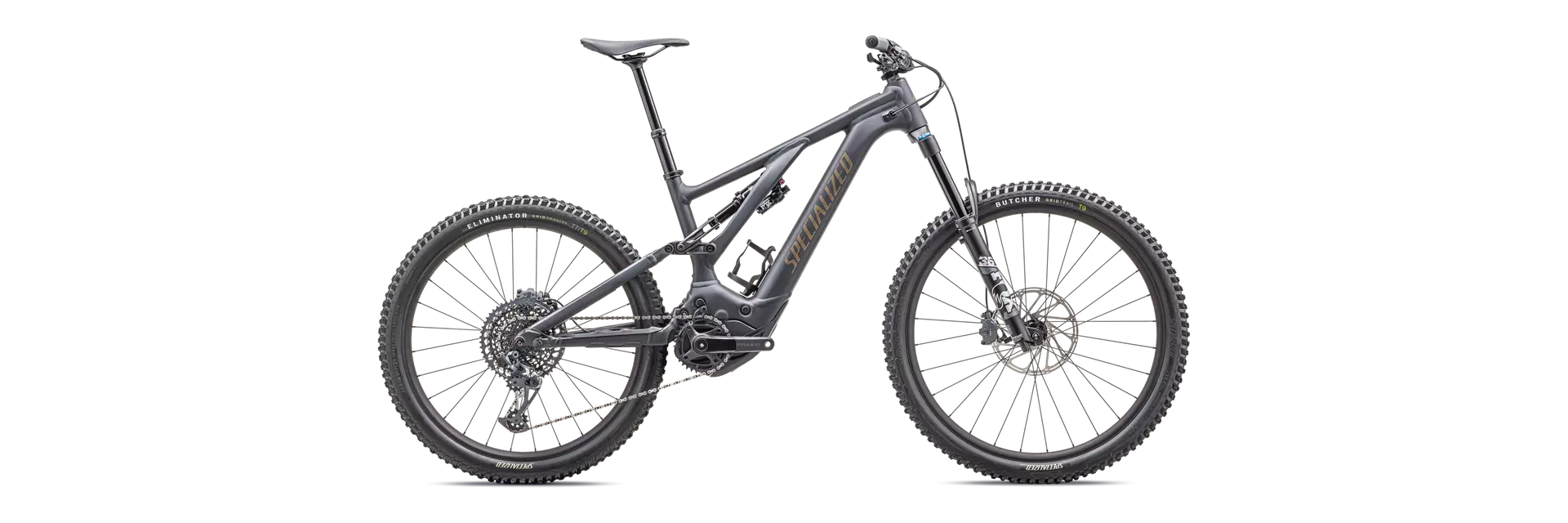

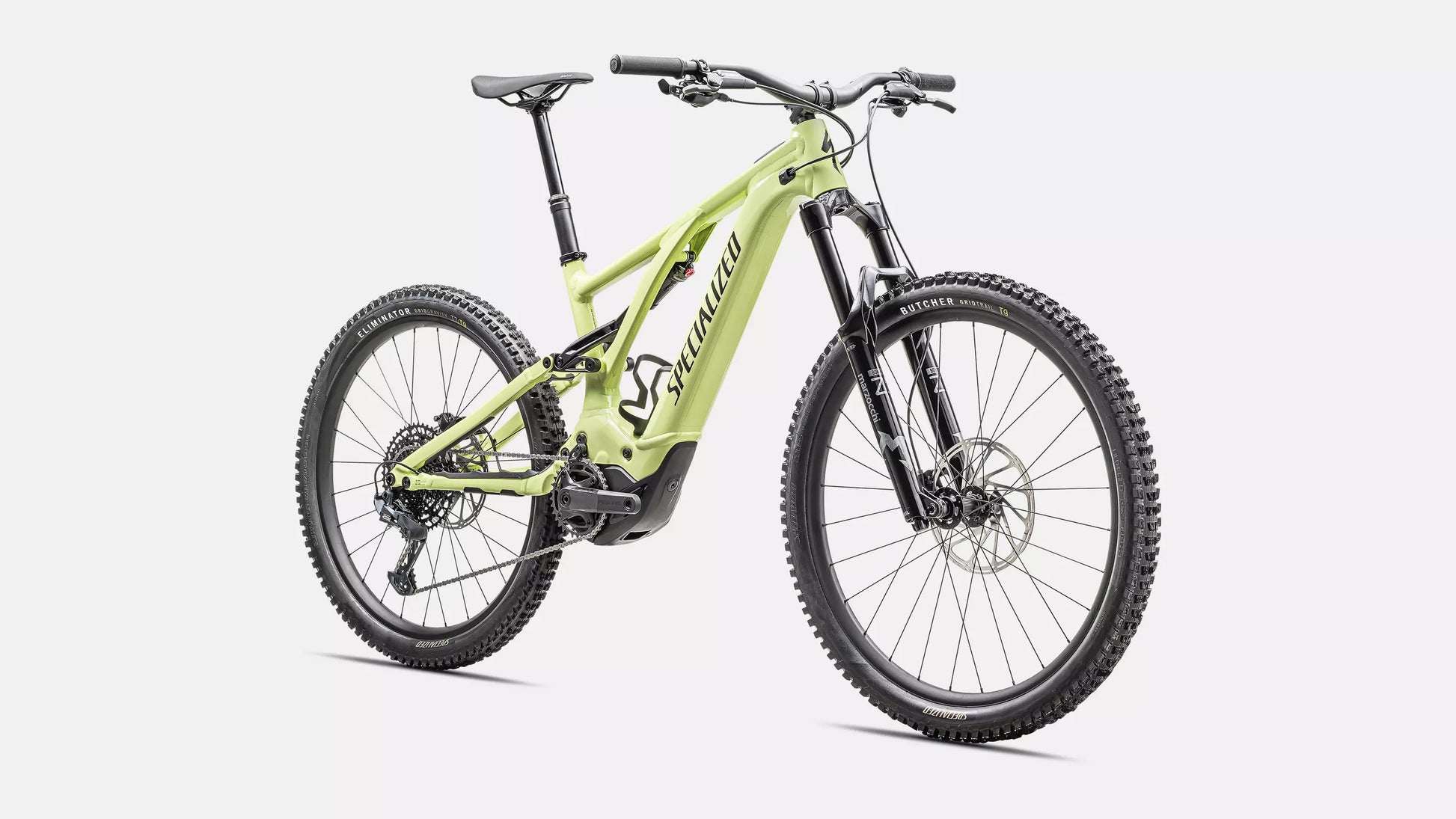

Turbo Levo 3 Alloy

Product Details

90Nm Torque, 565W Power, 700Wh Battery 2025

The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride-anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the latest Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Master Mind Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM NX/GX drivetrain, trail-taming Marzocchi suspension, and a lightweight, durable alloy wheelset, the Turbo Levo delivers more of everything that you love about trail riding.

Technical Specifications

E Bike

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Motor

Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power

Battery

Specialized M3-700, Integrated battery, 700Wh

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote



Frameset

Frame

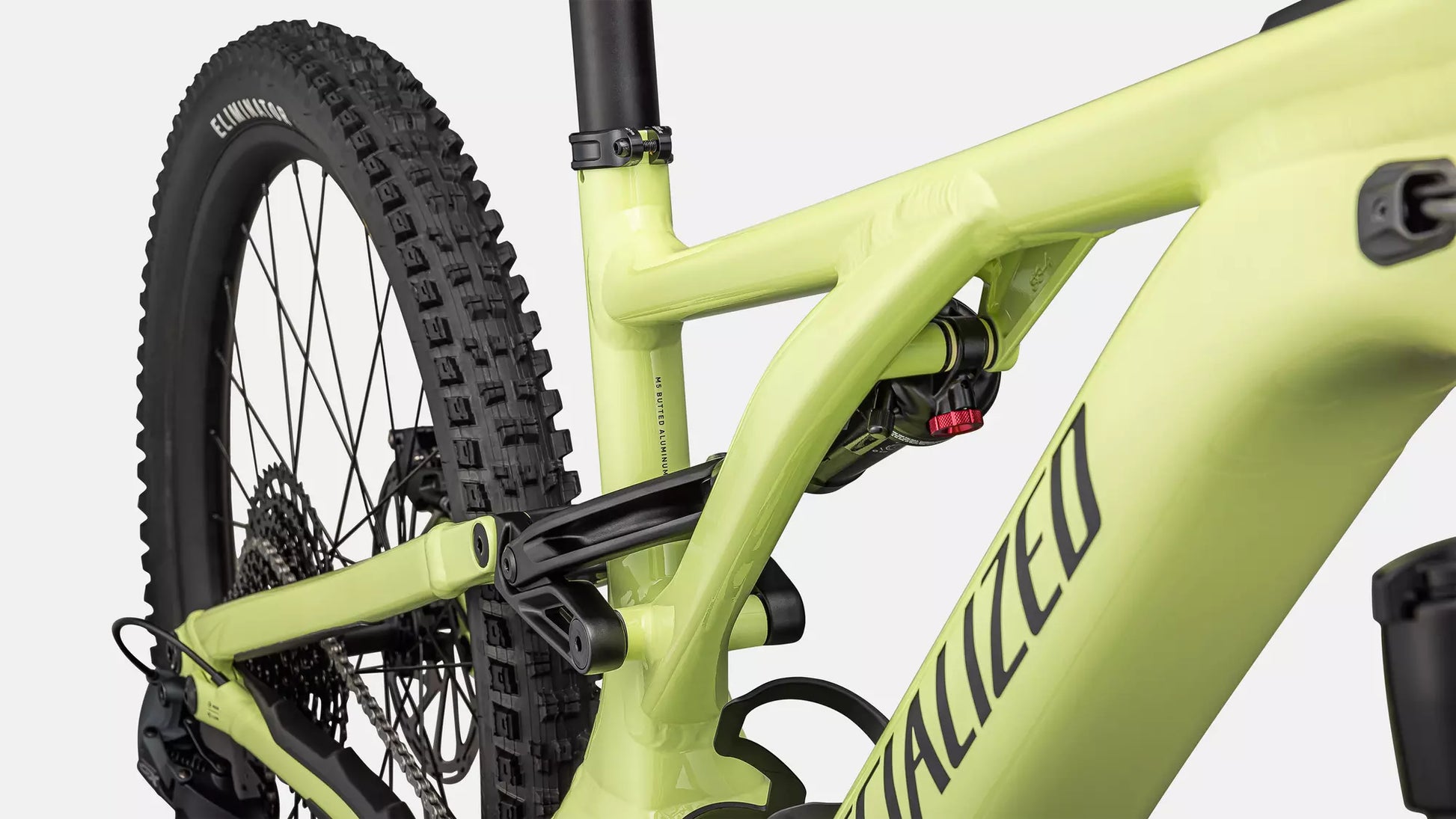

Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing

Suspension

Rear Shock

Marzocchi Bomber inline, S2-6: 210x55mm, S1: 210x52.5, low speed rebound adjust

Fork

Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression

Brakes

Front Brake

SRAM DB8, 220mm rotor

Rear Brake

SRAM DB8, 200mm rotor

Drivetrain

Crankset

Praxis forged M30, custom offset, 160mm

Rear Derailleur

SRAM GX Eagle, 12-speed

Chain

SRAM NX Eagle, 12-speed

Cassette

SRAM NX Eagle, 12-speed, 11-50t

Shift Levers

SRAM NX Eagle, single-click lever

Chainrings

SRAM X-Sync Eagle, 104 BCD, 32T, steel

Wheels & tires

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Spokes

DT Swiss Industry

Rear Tire

Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3"

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Rear Hub

Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h

Inner Tubes

Standard 40mm PV 29/27.5x1.75-2.4

Cockpit

Seat Binder

Alloy, 38.6mm

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Body Geometry Bridge Saddle, steel rails

Handlebars

6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise

Grips

Specialized Trail Grips

SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

Accessories

SWAT

SWAT CC steerer tube integrated tool with chain tool and link

Product details

Product ID

231082

Weight

Weight

24.21kg (53 lb, 6 oz)

Weight Size

S4
