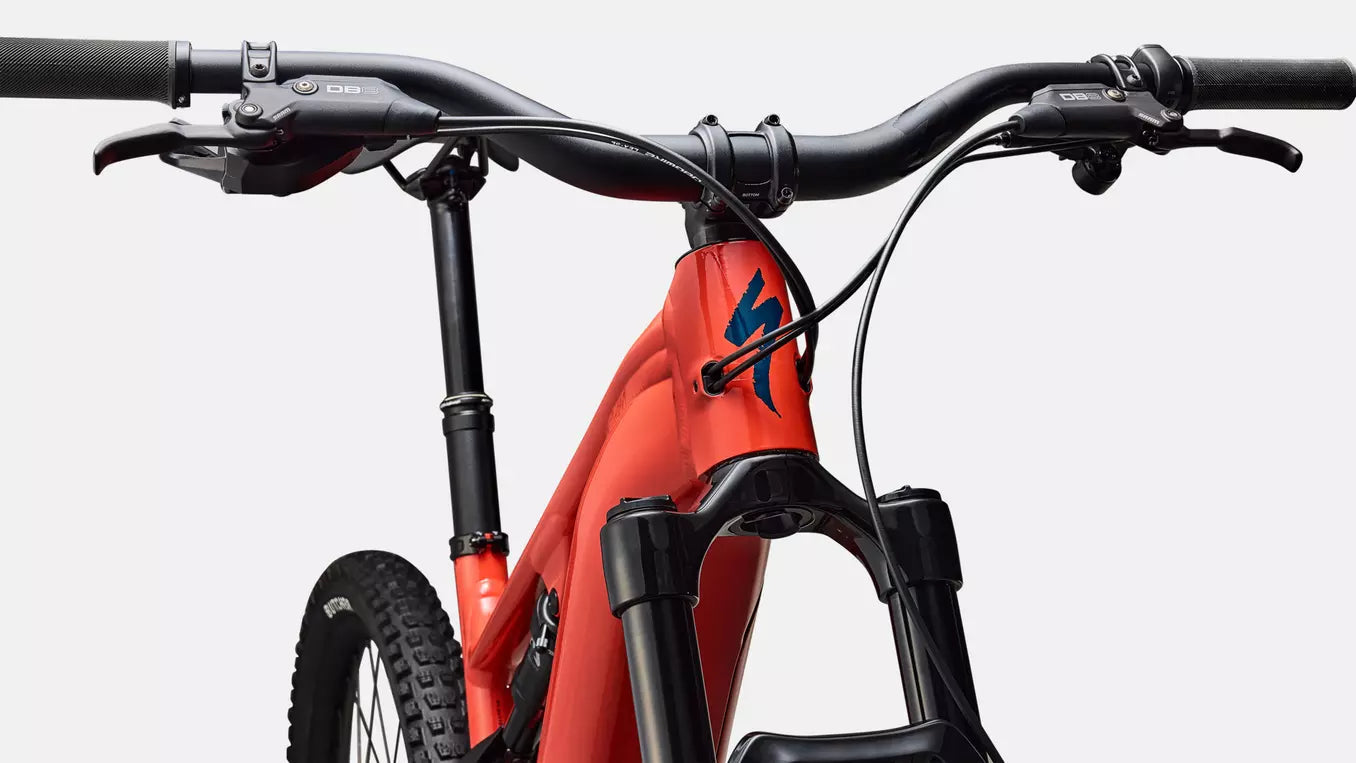

Turbo Levo 4 Alloy



Technical Specifications

E-bike



UI/Remote

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App



Motor

Specialized 3.1 Motor, 101Nm torque, 666Nm power up to 5.33 hour range



Charger

Specialized 4amp charger



Battery

840Wh battery



Frameset



Frame

All new Levo 4 M5 Alloy frame, 150mm travel, adjustable chain stay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm



Suspension



Rear Shock

Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm



Fork

Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression



Brakes



Front Brake

SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor



Rear Brake

SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor



Drivetrain



Cassette

XS-1270, 12-speed, 10-52t

Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel

Chain

SRAM Eagle 70 T-Type Flattop Chain

Rear Derailleur

SRAM Eagle 70 T-Type

Shift Levers

SRAM 70 trigger, 12-speed, single click

Crankset

SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm



Wheels & tires



Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"

Spokes

DT Swiss Elemental

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Rims

Specialized, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes

Standard, Presta Valve



Cockpit



Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width

Saddle

Body Geometry Bridge Saddle, steel rails

Grips

Specialized Trail Grips

SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm

Seat Binder

Alloy, 38.6mm



Accessories



SWAT

SWAT Internal downtube storage



Product details



Product ID

221348



Weight



Weight

26.08 kg (57 lb, 7.8 oz)

Weight Size

S4
