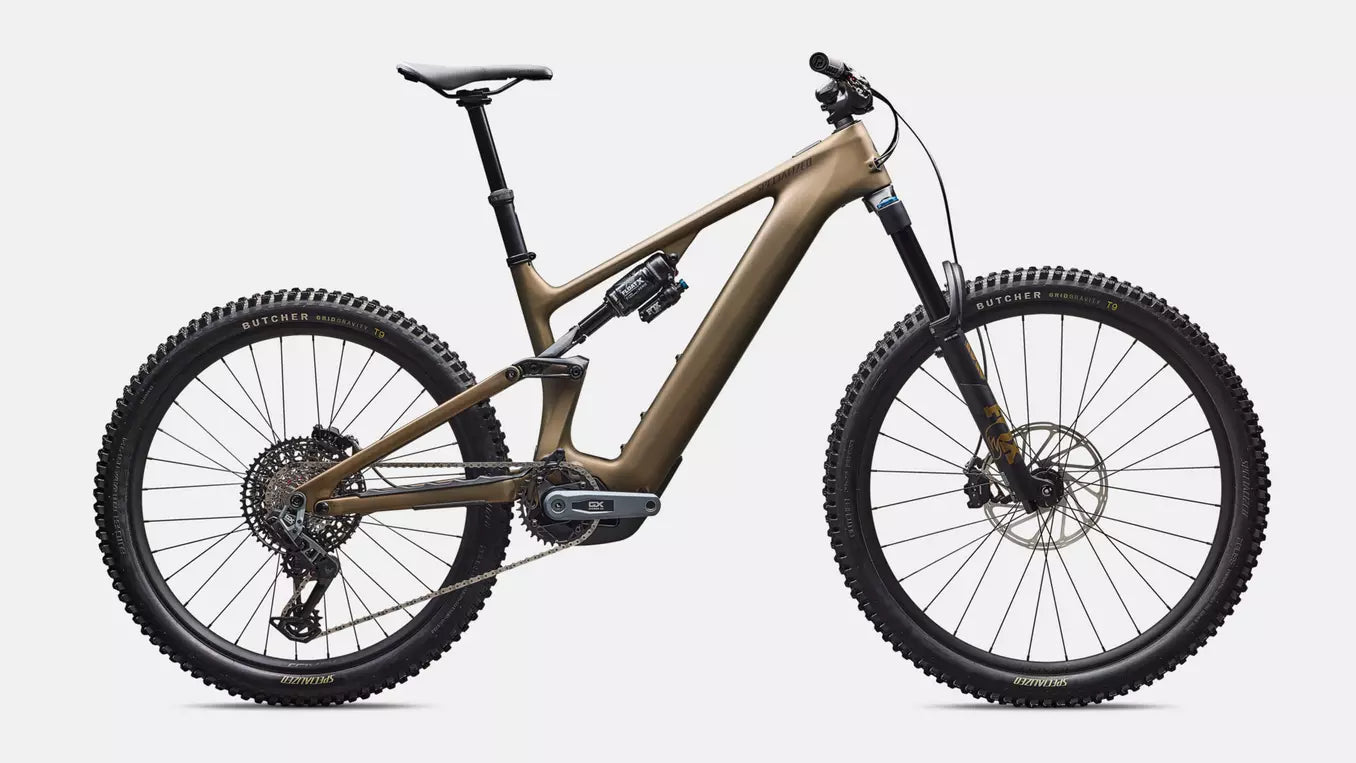

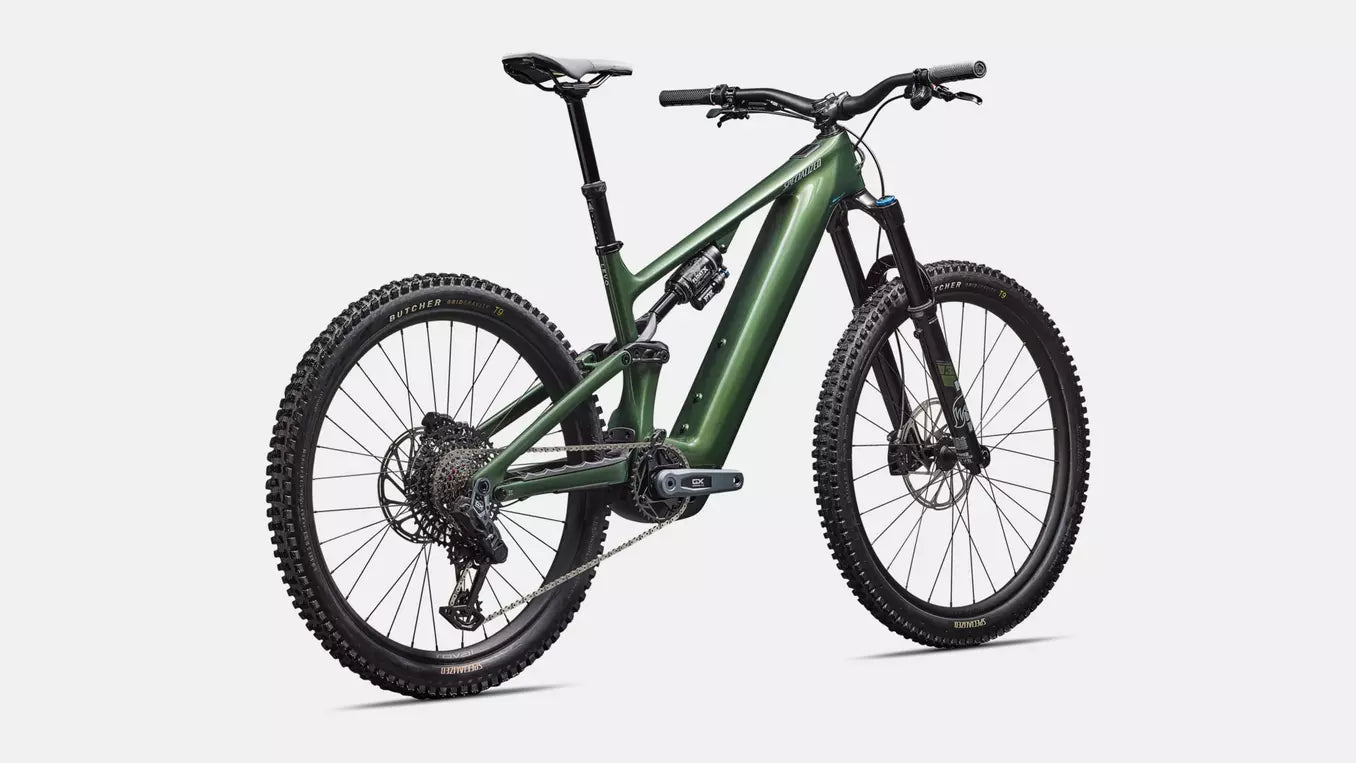

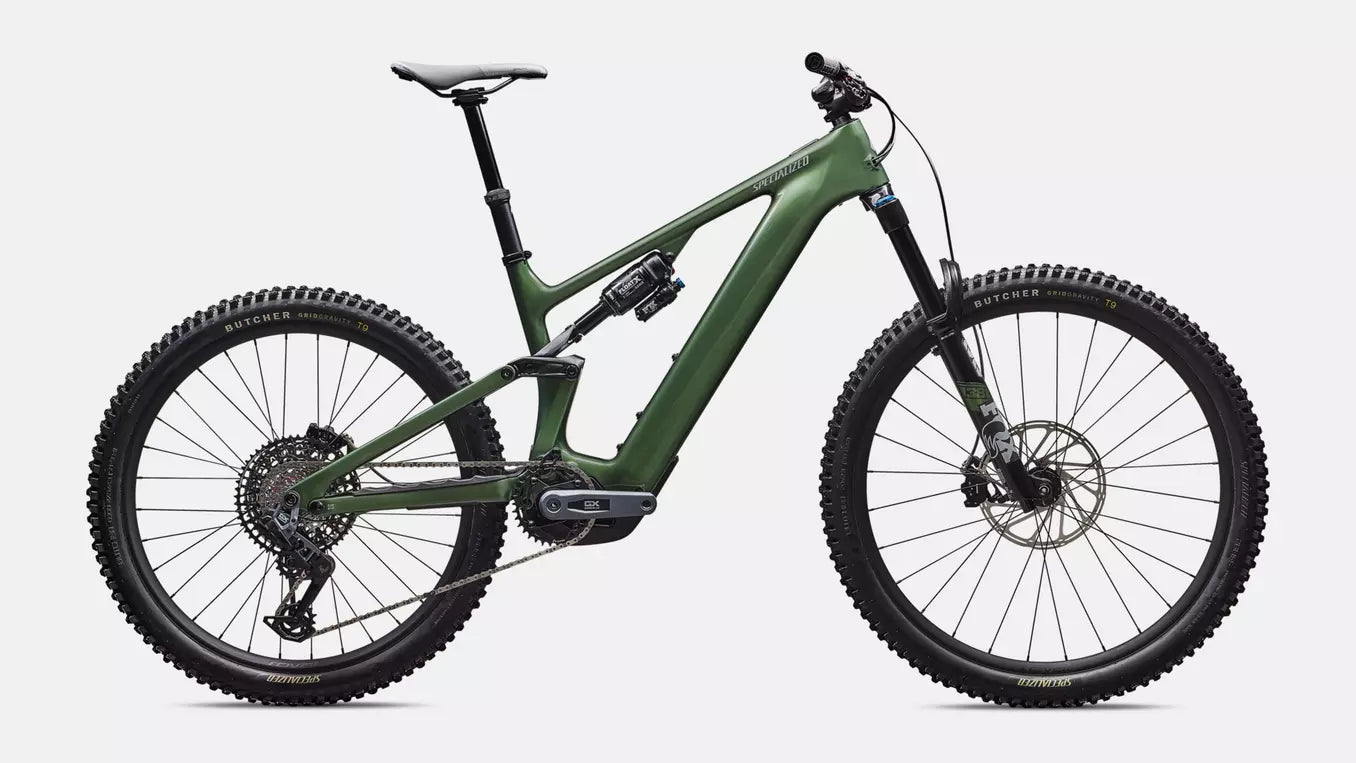

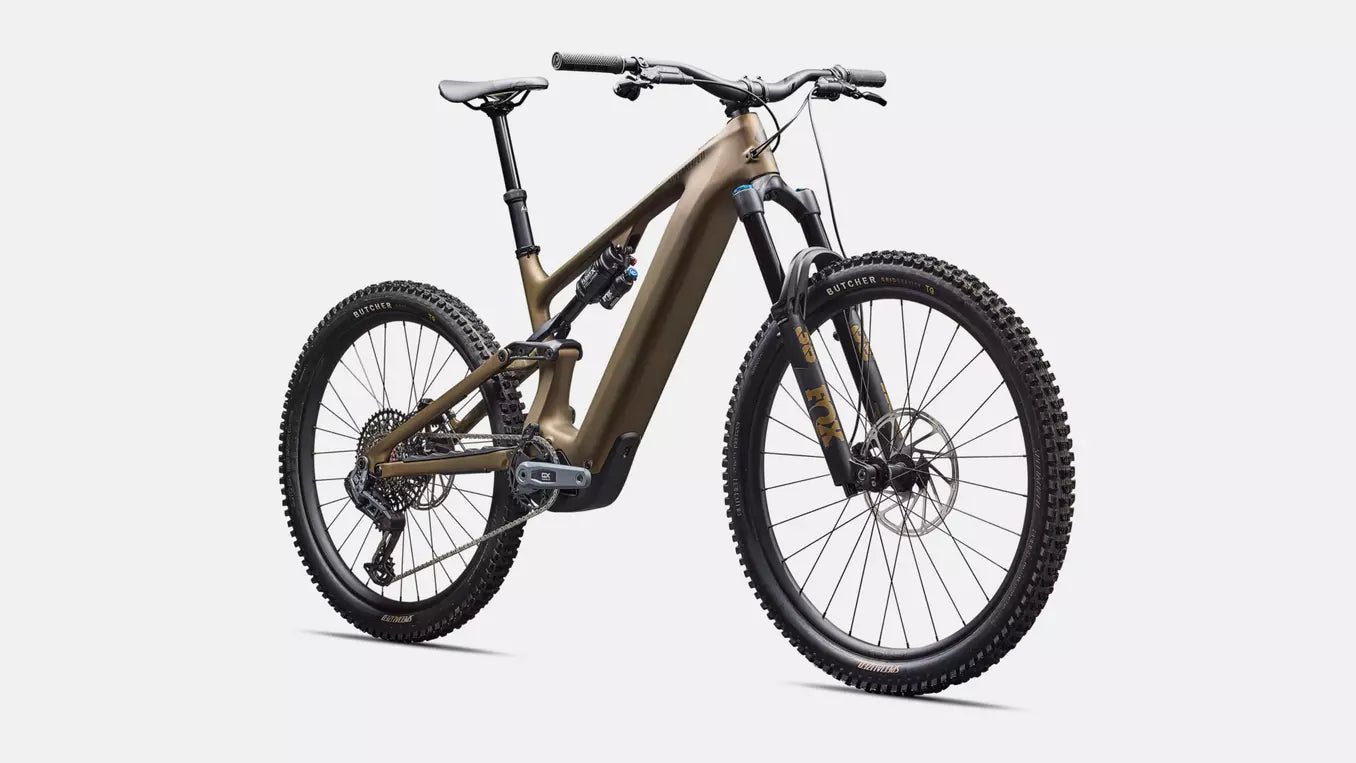

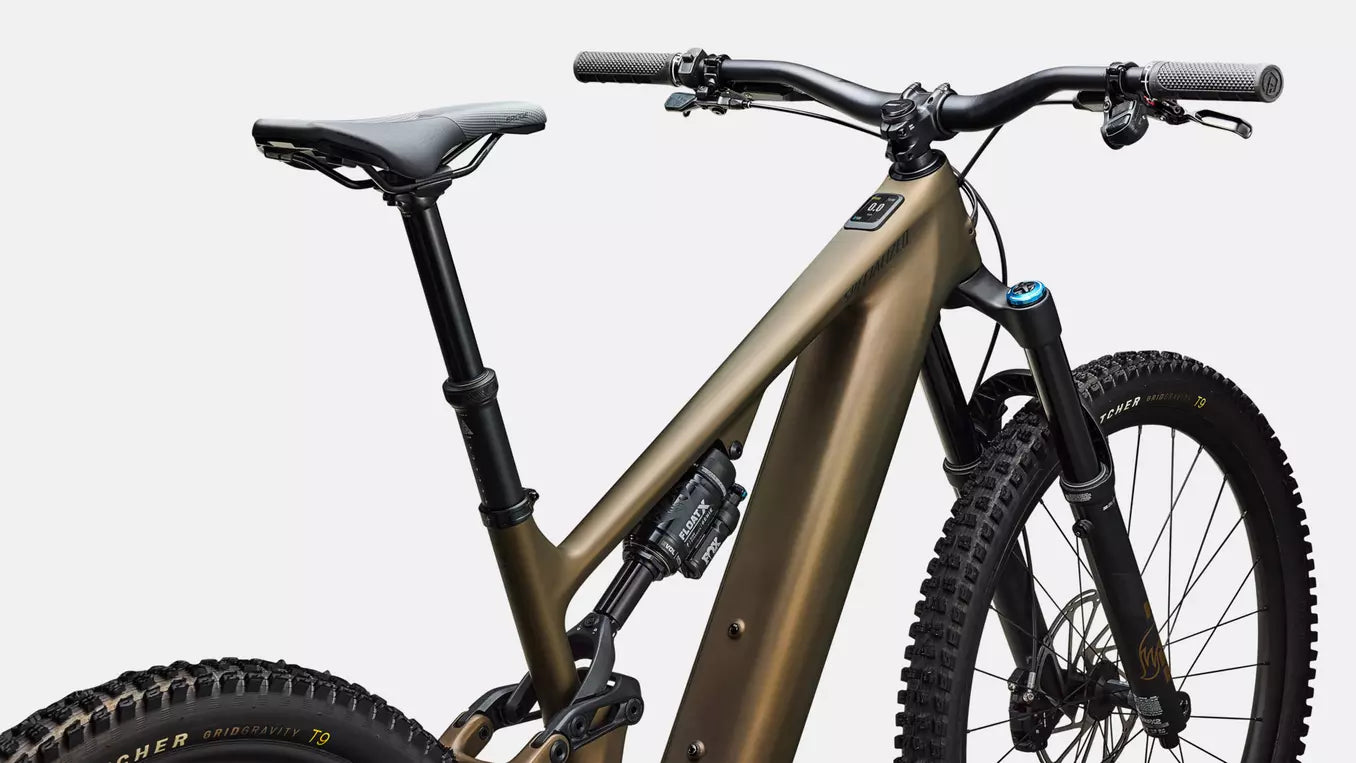

Turbo Levo 4 Expert 2026

Turbo Levo 4

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

 Technical Specifications

E-bike


UI/Remote

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

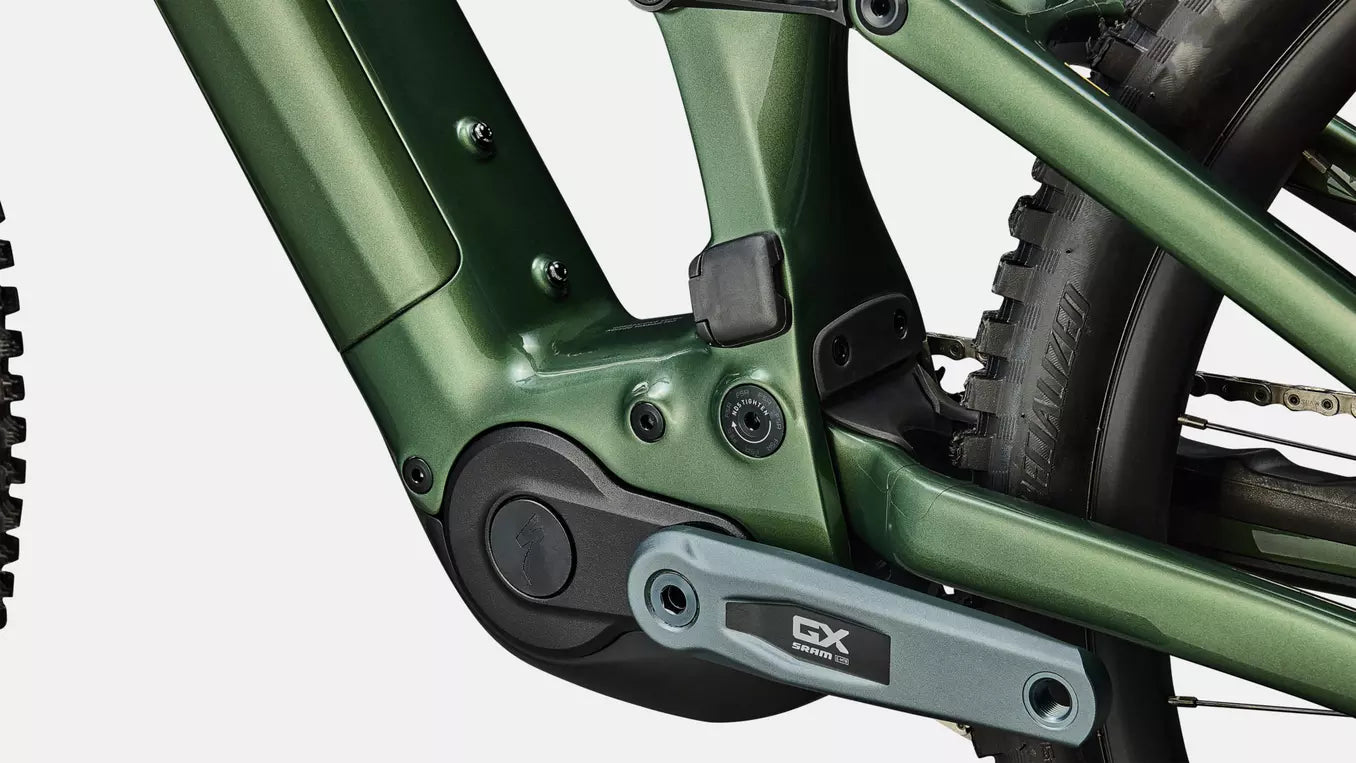

Motor

All New Specialized 3.1 Motor, 101Nm torque, 666W power

Charger

Specialized 4amp charger

Battery

840wh battery

Frameset

Frame

All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Suspension

Fork

FOX 38 Performance Elite series, 29", GRIP X2 damper,15x110mm axle, 44mm offset, 160mm of travel

Rear Shock

FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment

Brakes

Front Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm Rotor

Rear Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor

Drivetrain

Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel

Shift Levers

SRAM AXS POD Controller

Crankset

SRAM GX Eagle Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm

Rear Derailleur

SRAM GX Eagle Transmission Derailleur

Chain

SRAM GX Eagle Transmission Flattop Chain

Cassette

SRAM GX Eagle Transmission Cassette, 12spd, 10-52t

Wheels & tires

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Front Wheel

Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h

Rear Wheel

Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h

Inner Tubes

Standard, Presta valve

Cockpit

Seat Binder

Alloy, 38.6mm

Stem

Alloy Trail Stem, 35mm bar bore

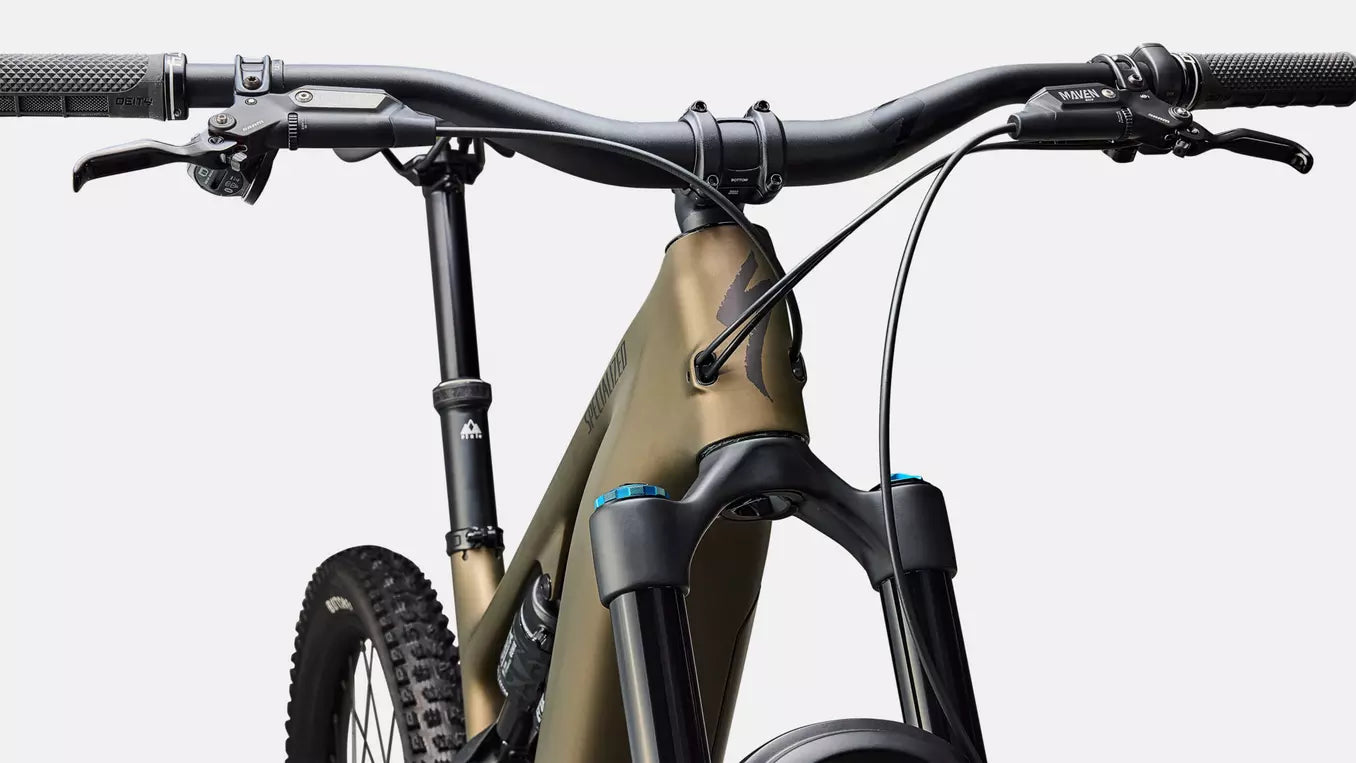

Handlebars

Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 780mm, S3-S5: 800mm

Grips

Deity Lockjaw grips

SeatPost

PNW Loam post w/travel adjust S2: 150mm, S3: 170mm, S4/S5/S6: 200mm

Saddle

Bridge Comp, Hollow Cr-mo rails

Accessories

SWAT

SWAT internal downtube storage

Product details

Product ID
218704

Weight

Weight

24.41 kg (53 lb, 13.0 oz)

Weight Size

S4



Geometry

	S2	S3	S4	S5	S6
Crank Length	155	155	155	155	155
Handlebar Width	780	800	800	800	800
Stem Length	40	40	40	40	40
Saddle Width	155	143	143	143	143
Seatpost Length	125	170	200	200	200
Stack	618	626	638	652	667
Reach	435	455	480	505	535
Headtube Length	95	103	117	132	149
Headtube Angle	64.5	64.5	64.5	64.5	64.5
BB Height	350	350	350	350	350
BB Drop	29.5	29.5	29.5	29.5	29.5
Trail	132	132	132	132	132
Fork Length (full)	577	577	577	577	577
Fork Rake/Offset	44	44	44	44	44
Front Center	765	789	820	851	888
Chainstay Length	435	435	435	435	435
Wheelbase	1200	1223	1254	1286	1323
Top-tube Length (horizontal)	578	599	627	655	689
Bike Standover Height	753	754	753	758	761
Seat Tube Length	390	405	425	445	465
Seat Tube Angle	77	77	77	77	77
Saddle Height for Effective ST Angle	690	735	780	825	870
Max Seatpost Insertion	274	289	313	337	357
Min Seatpost Insertion	80	80	80	80	80
