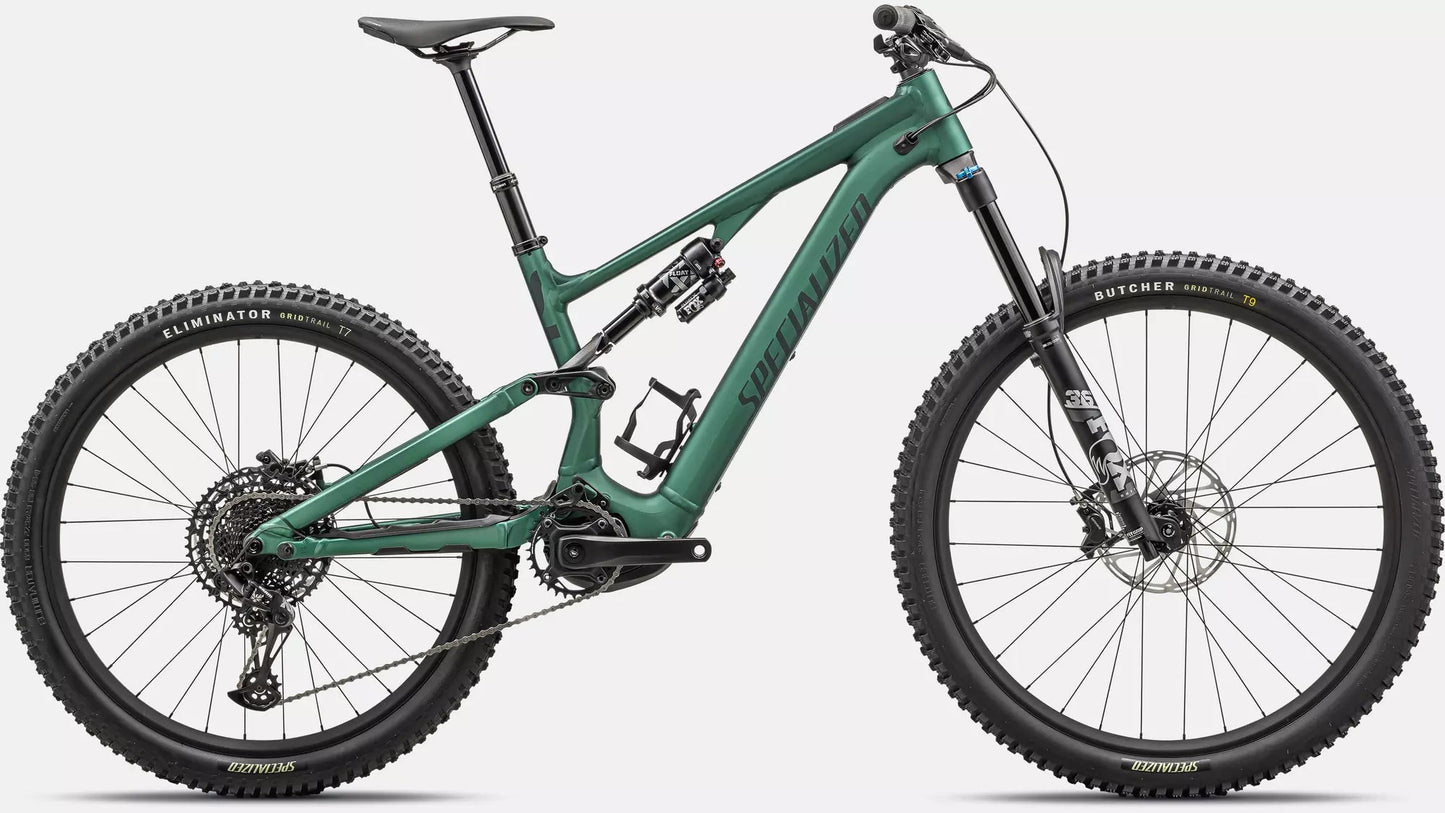

Turbo Levo SL Comp Alloy

The Levo SL Alloy delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL Alloy. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and “2 X You” amplification that gives you the Power to Ride More Trails.

 When everything works just right a bike disappears when you ride it. We stripped away the mass to keep the Levo SL Alloy lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to nail big moves. Its dialed geometry, kinematics, and shock tuning leave nothing desired.

Technical Specifications

E-bike

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 48V System w/ SL system charger plug

Motor

Specialized 1.2 SL Custom Rx Trail Tuned Motor

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
The Levo SL Alloy integrates fully with our Specialized app and lets you personalize your motor characteristics.
Connecting the bike, the Turbo OS, the Specialized app as well as the rider, all in a protected and easily visible display. With MicroTune fine-tuning power output levels in real time  at your fingertips, optimizing range management and performance.

Battery

Specialized SL1-320, fully integrated, 320Wh
And if you’re looking for even more miles, our range extender boosts your range by another 50 percent. The Specialized app can handle battery management automatically.

Frameset

Frame

All new Levo SL Alloy Frame, M5 alloy, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.

Suspension

Fork

Fox 36 Rhythm, 29", S1: 150mm, S2-S6: 160mm

Rear Shock

S1: Fox Float Performance Series, 210x50mm, S2-S6: Fox Float X Performance Series, 210x55mm

Brakes
Rear Brake

SRAM Code R, 4-piston caliper, hydraulic disc, 200mm

Front Brake

SRAM Code R, 4-piston caliper, hydraulic disc, 200mm

Drivetrain
Chainrings

New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring

Crankset

SRAM Dub alloy cranks, 165/170/175mm

Rear Derailleur

SRAM NX Eagle, 12-speed

Chain

SRAM NX Eagle, 12-speed

Cassette

SRAM NX Eagle, 12-speed, 11-50t

Shift Levers

SRAM NX Eagle, trigger, 12-speed

Wheels & tires

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Spokes

DT Swiss Industry

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"

Rims

Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes

Presta, Standard Valve

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Cockpit

Seat Binder

Alloy, 38.6mm

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

Grips

Specialized Trail Grips

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm

Accessories

SWAT
SWAT CC tool in steerer tube
