The Levo SL delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree, Levo SL is the ultimate trail bike.

Technical Specifications

E-BIKE

Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 48V System w/ SL system charger plug
Motor
New Specialized 1.2 SL Custom Rx Trail Tuned Motor
UI/Remote

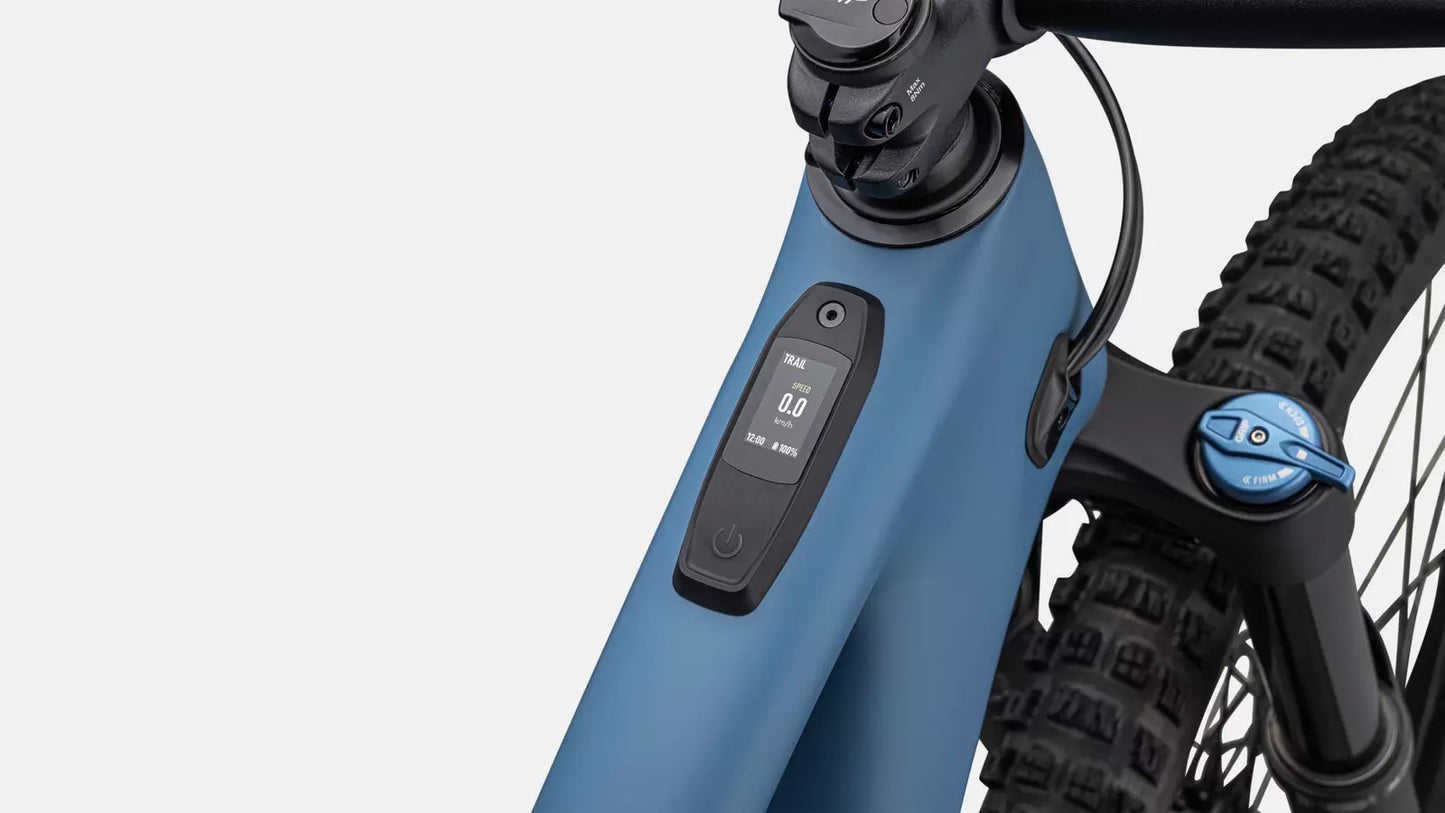

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh

Suspension

Rear Shock
S2-S6: Fox Float X Performance series, 210x55mm, S1: Fox Float DPS Performance series, 210x50mm
Fork
Fox 36 Rhythm, 29", 44mm offset, Grip damper, S1: 150mm, S2-S6: 160mm travel

 Frameset

Frame
All new Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.

 Cockpit

Seat Binder
Alloy, 38.6mm
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Tape
Specialized Trail Grips
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm

 Wheels

Rear Hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Spokes
DT Swiss Industry
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Rims
Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta Valve

Drivetrain

Chainrings
New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Crankset
SRAM Alloy Crankset, Dub interface
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX, trigger, 12-speed
Chain
SRAM NX Eagle, 12-speed
Cassette
Sram XG-1275, 12-speed, 10-52t


Accessories

SWAT
SWAT CC steerer tube integrated tool with chain tool and link


Brakes

Rear Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Front Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice
