Technical Specifications
FRAMESET
Seat Binder
Alloy, 38.6mm
Frame
All new Levo SL SW Frame, Fact 11m carbon, carbon shock extension, 150mm travel, adjustable head angle, BB height, 12x148mm UDH compatible rear spacing, and compatible with 27.5 or 29" wheels.
COCKPIT
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Grips
Deity Grips
Stem
Deity, 35.0mm
Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
SeatPost
Bike Yoke, Revive Max, 34.9 (S1:120mm, S2-S3:150mm, S4-S5: 185mm, S6: 213mm)
WHEELS
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Inner Tubes
Standard, Presta Valve
Spokes
DT Competition Race
Rear Hub
DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims
Roval Traverse Carbon, 29 Front, 27.5 Rear, 30mm inner width, hand-built, 2Bliss Ready
Front Hub
DT Swiss 350, sealed cartridge bearings, 15x110mm spacing, 28h
E-BIKE
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 48V System w/ SL system charger plug
Motor
New Specialized 1.2 SL Custom Rx Trail Tuned Motor
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
SUSPENSION
Fork
Fox 36 Factory, 29", 44mm offset, Grip 2 damper, Kashima, S1: 150mm, S2-S6:160mm
Rear Shock
S2-S6: Fox Float X Factory series, Kashima, 210x55mm, S1: Fox Float DPS Factory, Kashima, 210x50mm
DRIVETRAIN
Chainrings
New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Shift Levers
SRAM AXS POD Controller
Crankset
SRAM Carbon Crankset, Dub interface
Rear Derailleur
SRAM X0 Eagle Transmission Derailleur
Cassette
SRAM X0 Eagle Transmission Cassette, 12spd, 10-52t
Chain
SRAM X0 Eagle Transmission Flattop Chain
ACCESSORIES
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
BRAKES
Front Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm
Rear Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 165mm | 170mm | 170mm | 170mm | 175mm |
Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
Stem Length | 35mm | 35mm | 35mm | 35mm | 50mm | 50mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 125 mm | 160 mm | 160 mm | 185 mm | 185 mm | 213mm |
Stack | 609mm | 617mm | 626mm | 635mm | 645mm | 654mm |
Reach | 405mm | 425mm | 445mm | 470mm | 495mm | 525mm |
Head-Tube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
Head-Tube Angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
B-B Height | 343mm | 348mm | 348mm | 348mm | 348mm | 348mm |
B-B Drop | -34mm | -29mm | -29mm | -29mm | -29mm | -29mm |
Trail | 132mm | 132mm | 132mm | 132mm | 132mm | 132mm |
Fork Length, Full | 560mm | 570mm | 570mm | 570mm | 570mm | 570mm |
Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
Front-Center | 726mm | 752mm | 776mm | 806mm | 835mm | 869mm |
Chain-Stay Length | 433mm | 432mm | 432mm | 432mm | 432mm | 432mm |
Wheelbase | 1158mm | 1184mm | 1208mm | 1238mm | 1267mm | 1301mm |
Top Tube Length, Horizontal | 560mm | 582mm | 604mm | 631mm | 659mm | 691mm |
Bike Stand-Over Height | 727mm | 763mm | 766mm | 767mm | 773mm | 778mm |
Seat-Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Seat-Tube Angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |

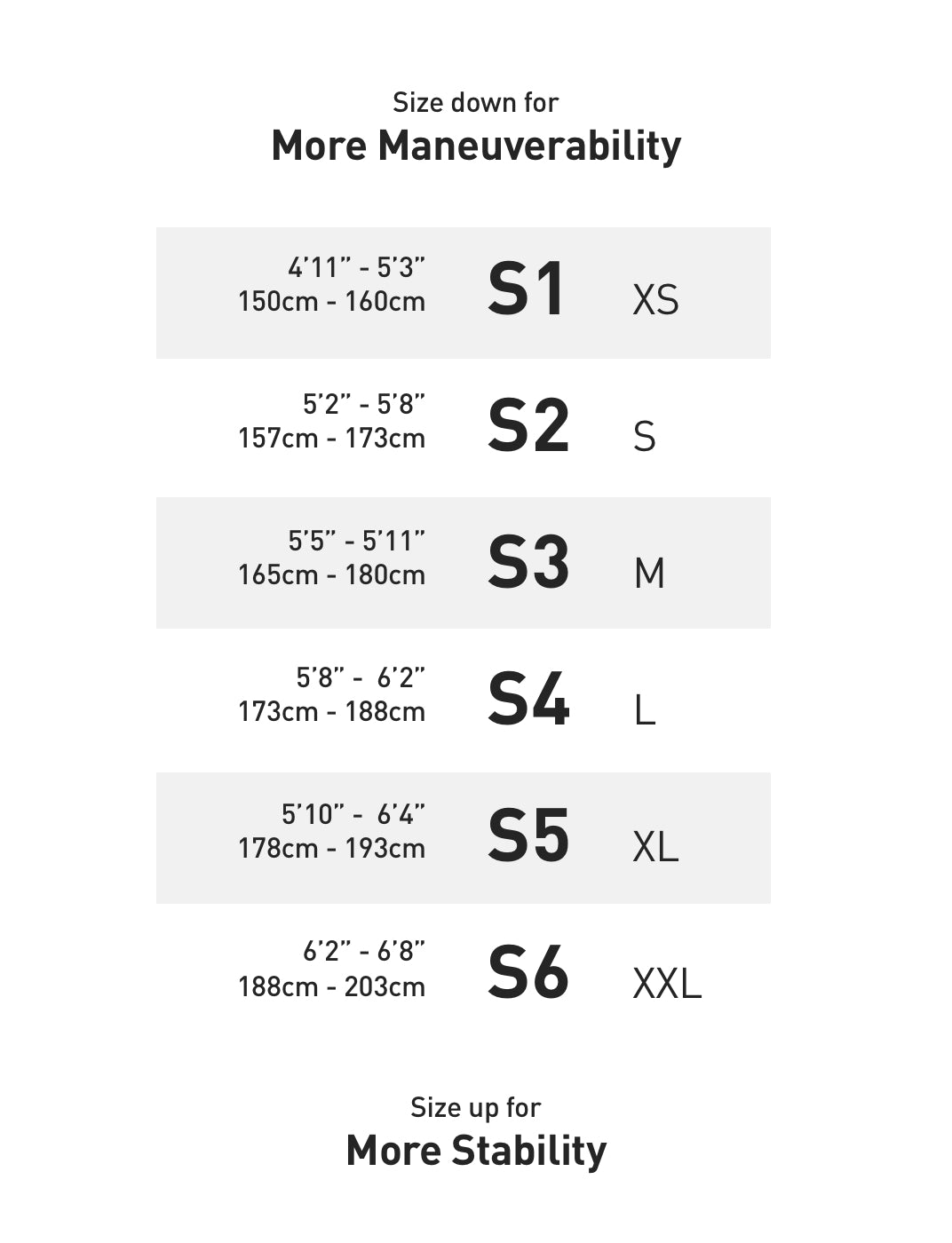

Size Guide
-
